Extensions
Extensions Status can be seen from the same configuration page, users can go under Web
GUIExtension/TrunkExtensions and following page will be displayed listing the extensions and their status
information.

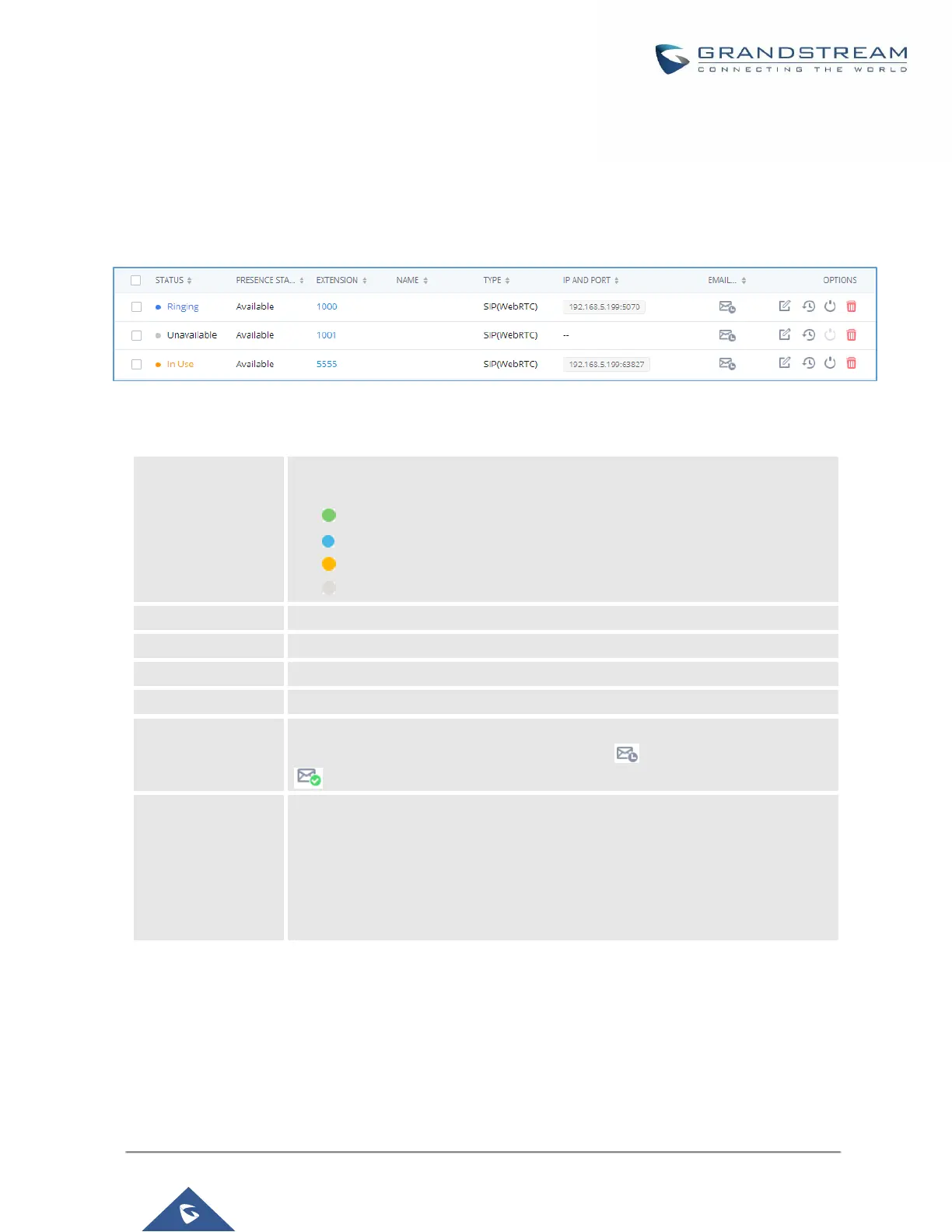

Figure 259: Extension Status
Table 132: Extension Status
Status
Display extension number (including feature code). The color indicator has the
following definitions.
 Green: Free
 Blue: Ringing
 Yellow: In Use
 Grey: Unavailable
Presence Status
Display the presence status of the extension.
Extension
Display the extension number.
CallerID Name
First name and last name of the extension.
IP and Port
Display the IP and port number of the registered device.
Email
Display Email Notification status for the extension.
When notification is waiting for be sent, shows and once sent it will display
Terminal Type
Displays extension type.
 SIP User
 IAX User
 Analog User
 Ring Groups
 Voicemail Groups
Interfaces Status
This section displays interface/port connection status on the UCM630X. The following example shows the
interface status for UCM6304 with USB, WAN port, FXS1, FXS2 and FXO1 connected.
