P a g e | 55

UCM630X Series User Manual

Version 1.0.2.25

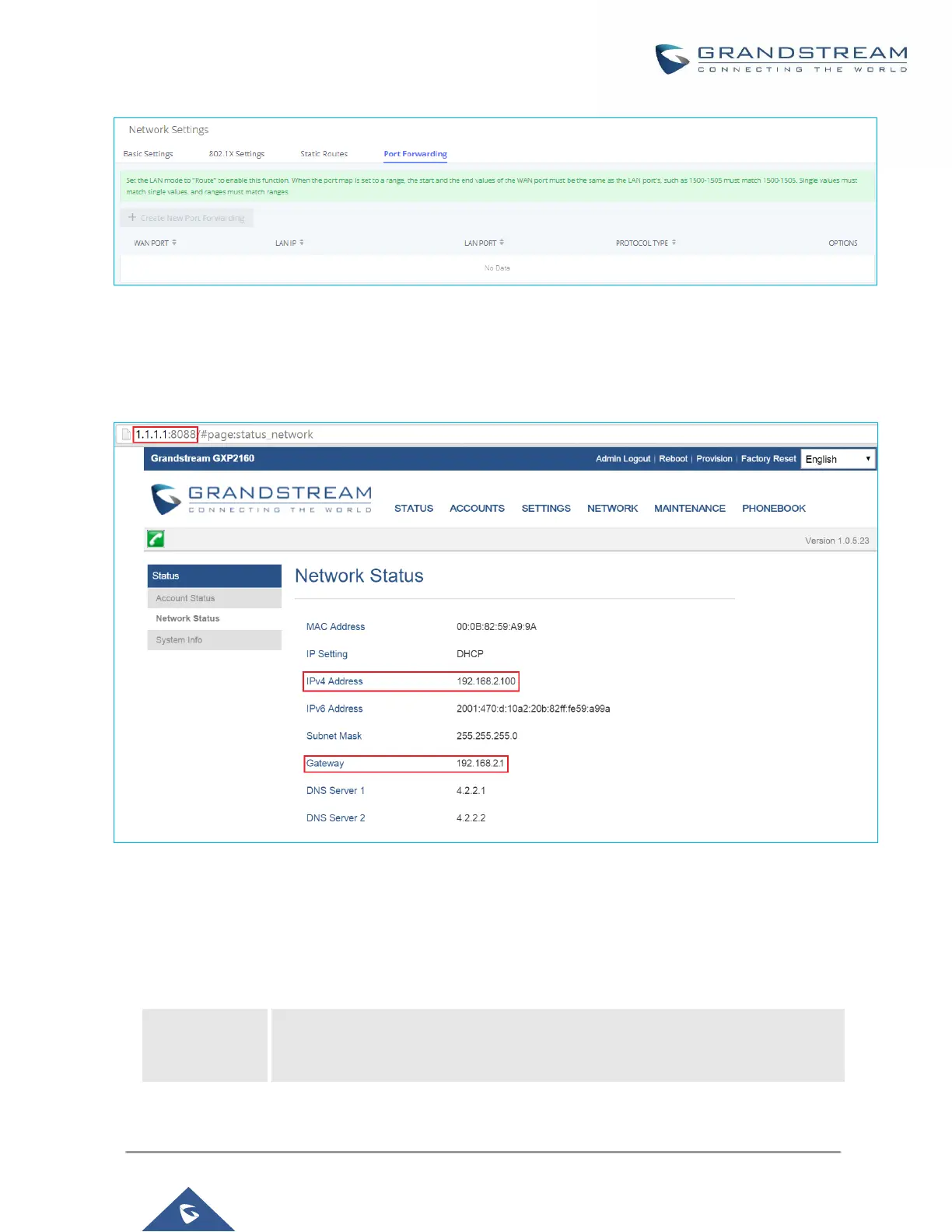

Figure 23: UCM630X Port Forwarding Configuration

This will allow users to access the GXP2160 Web GUI from public side, by typing in public IP address (example:

1.1.1.1:8088).

Figure 24: GXP2160 Web Access using UCM6302 Port Forwarding

ARP Settings

The ARP settings can be configured under Web GUISystem SettingsNetwork SettingsARP Settings

Table 10: ARP Settings

ARP GC

Threshold 1

Minimum number of entries to keep. Garbage collector will not purge entries if there

are fewer than this number. The default value is 128.
