UCM630X Series User Manual
Version 1.0.2.25
802.1X
IEEE 802.1X is an IEEE standard for port-based network access control. It provides an authentication
mechanism to device before the device can access Internet or other LAN resources. The UCM630X supports

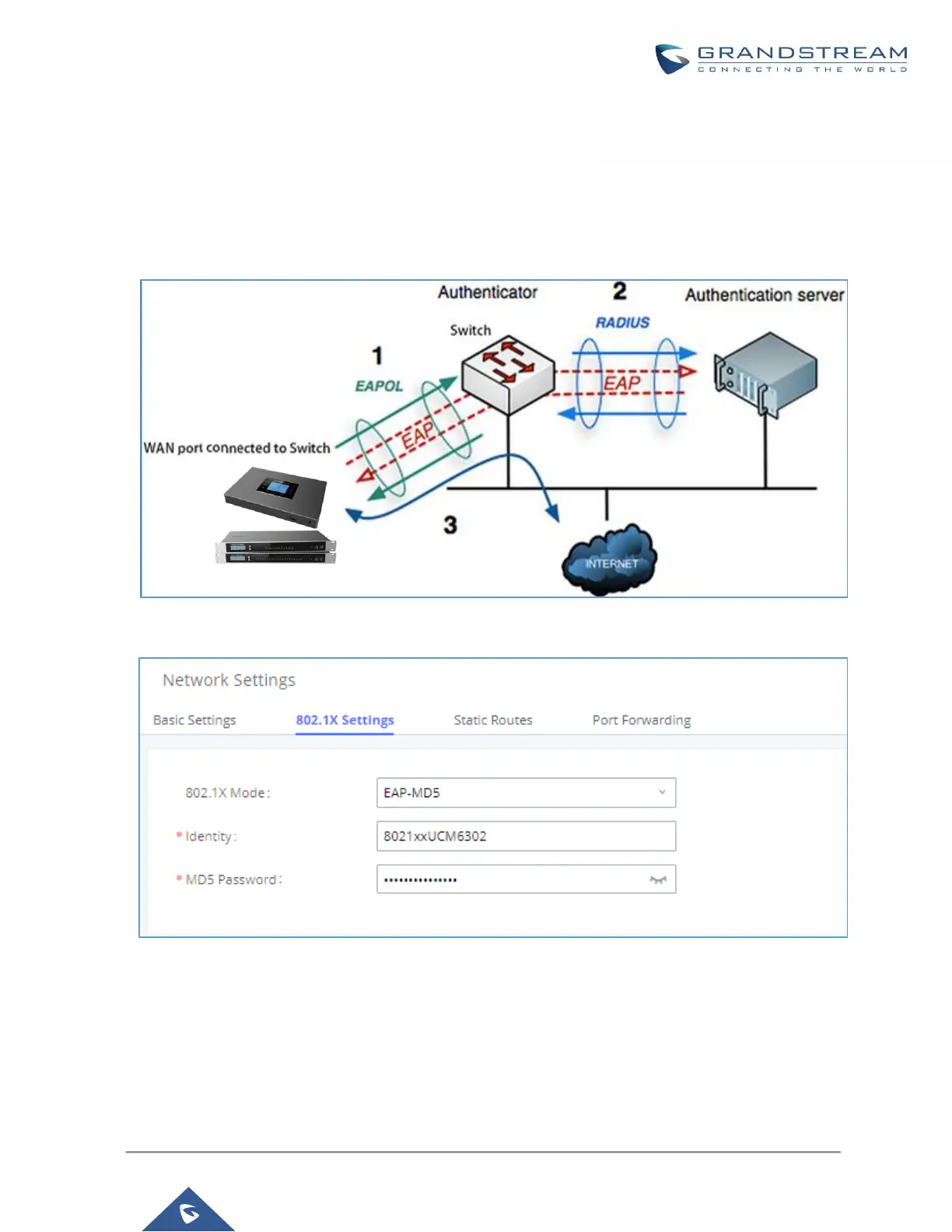

802.1X as a supplicant/client to be authenticated. The following diagram and figure show UCM630X use 802.1X
mode “EAP-MD5” on WAN port as client in the network to access Internet.
Figure 18: UCM630X Using 802.1X as Client
Figure 19: UCM630X Using 802.1X EAP-MD5
The following table shows the configuration parameters for 802.1X on UCM630X. Identity and MD5 password
are required for authentication, which should be provided by the network administrator obtained from the
RADIUS server. If “EAP-TLS” or “EAP-PEAPv0/MSCHAPv2” is used, users will also need to upload 802.1X CA
Certificate and 802.1X Client Certificate, which should be also generated from the RADIUS server.
