P a g e | 368

UCM630X Series User Manual

Version 1.0.2.25

Trunks

Users could see all the configured trunk status in this section.

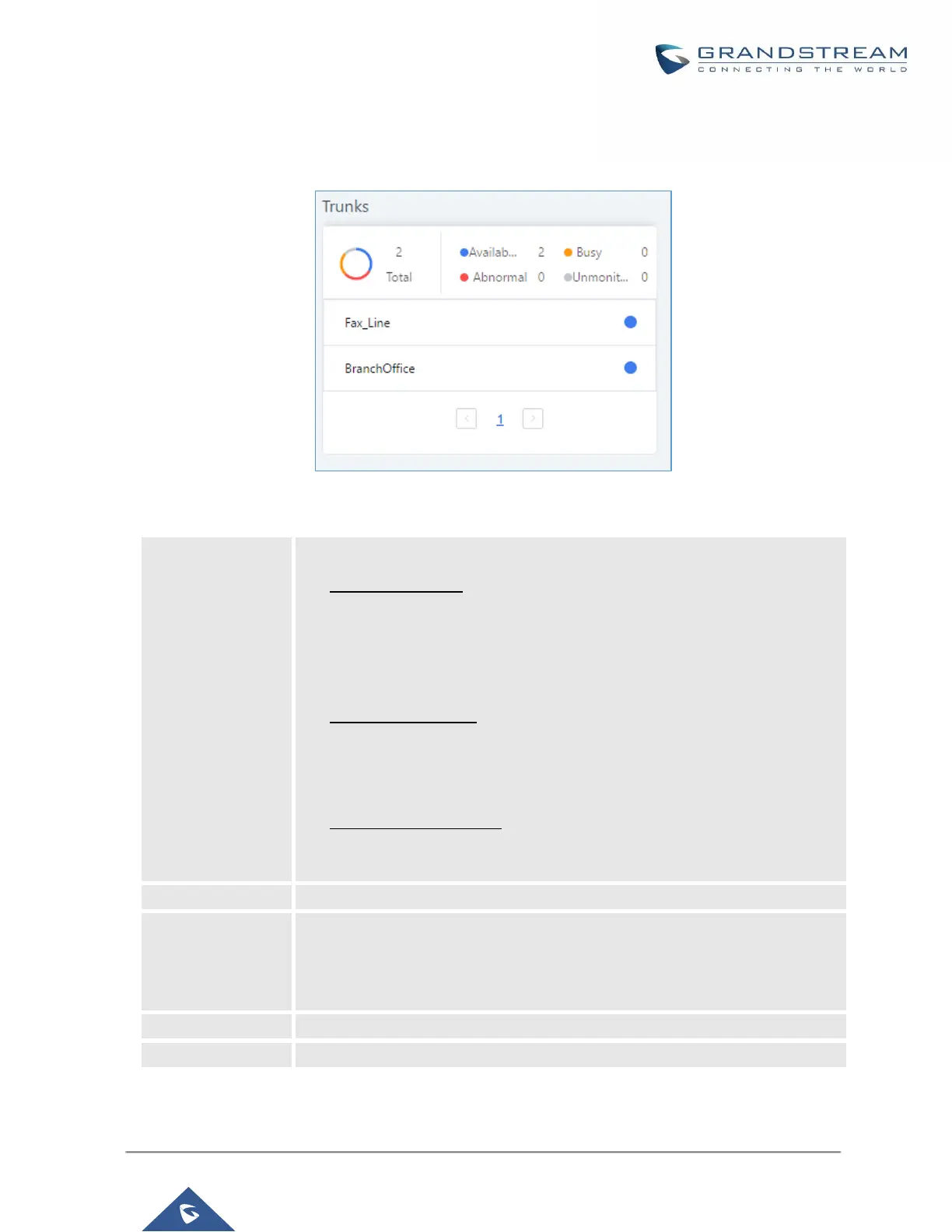

Figure 258: Trunk Status

Table 131: Trunk Status

Status

Display trunk status.

 Analog trunk status:

Available

Busy

Unavailable

Unknown Error

 SIP Peer trunk status:

Unreachable: The hostname cannot be reached.

Unmonitored: Heartbeat feature is not turned on to be monitored.

Reachable: The hostname can be reached.

 SIP Register trunk status:

Registered

Unrecognized Trunk

Trunks

Display trunk name

Type

Display trunk Type:

 Analog

 SIP

 IAX

Username

Display username for this trunk.

Port/Hostname/IP

Display Port for analog trunk, or Hostname/IP for VoIP (SIP/IAX) trunk.
