P a g e | 72
UCM630X Series User Manual
Version 1.0.2.25
phonebook DN “ou=phonebook,dc=pbx,dc=com” will be automatically created by the UCM630X once the CSV
file is imported.
In the CSV file, users can specify different phonebook DN fields for different contacts. If the phonebook DN
already exists on the UCM630X LDAP Phonebook, the contacts in the CSV file will be added into the existing
phonebook. If the phonebook DN does not exist on the UCM630X LDAP Phonebook, a new phonebook with this
phonebook DN will be created.
The sample phonebook CSV file in above picture will result in the following LDAP phonebook in the UCM630X.

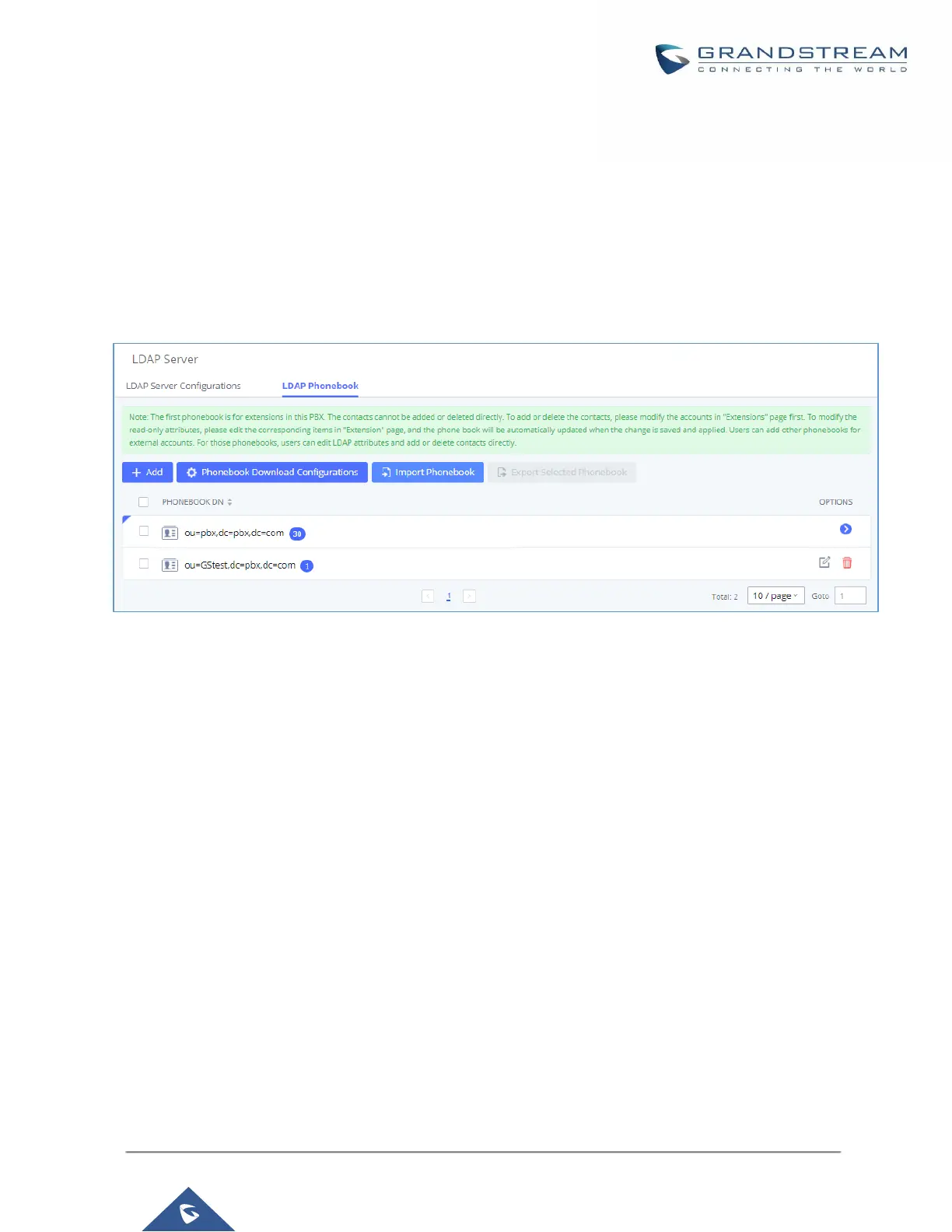

Figure 41: LDAP Phonebook After Import
As the default LDAP phonebook with DN “ou=pbx,dc=pbx,dc=com” cannot be edited or deleted in LDAP
phonebook section, users cannot import contacts with Phonebook DN field “pbx” if existed in the CSV file.
Export phonebook to your computer from UCM630X LDAP server
Select the checkbox for the LDAP phonebook and then click on “Export Selected Phonebook” to export the
selected phonebook. The exported phonebook can be used as a record or a sample CSV, VFC or XML file for
the users to add more contacts in it and import to the UCM630X again.
