P a g e | 39
UCM630X Series User Manual
Version 1.0.2.25
Using the Web UI
Accessing the Web UI
The UCM's web server responds to HTTP/HTTPS GET/POST requests. Embedded HTML pages allow users to
configure the device through a web browser such Microsoft IE (version 8+), Mozilla Firefox, Google Chrome,
etc. To access the UCM's web portal, follow the steps below:

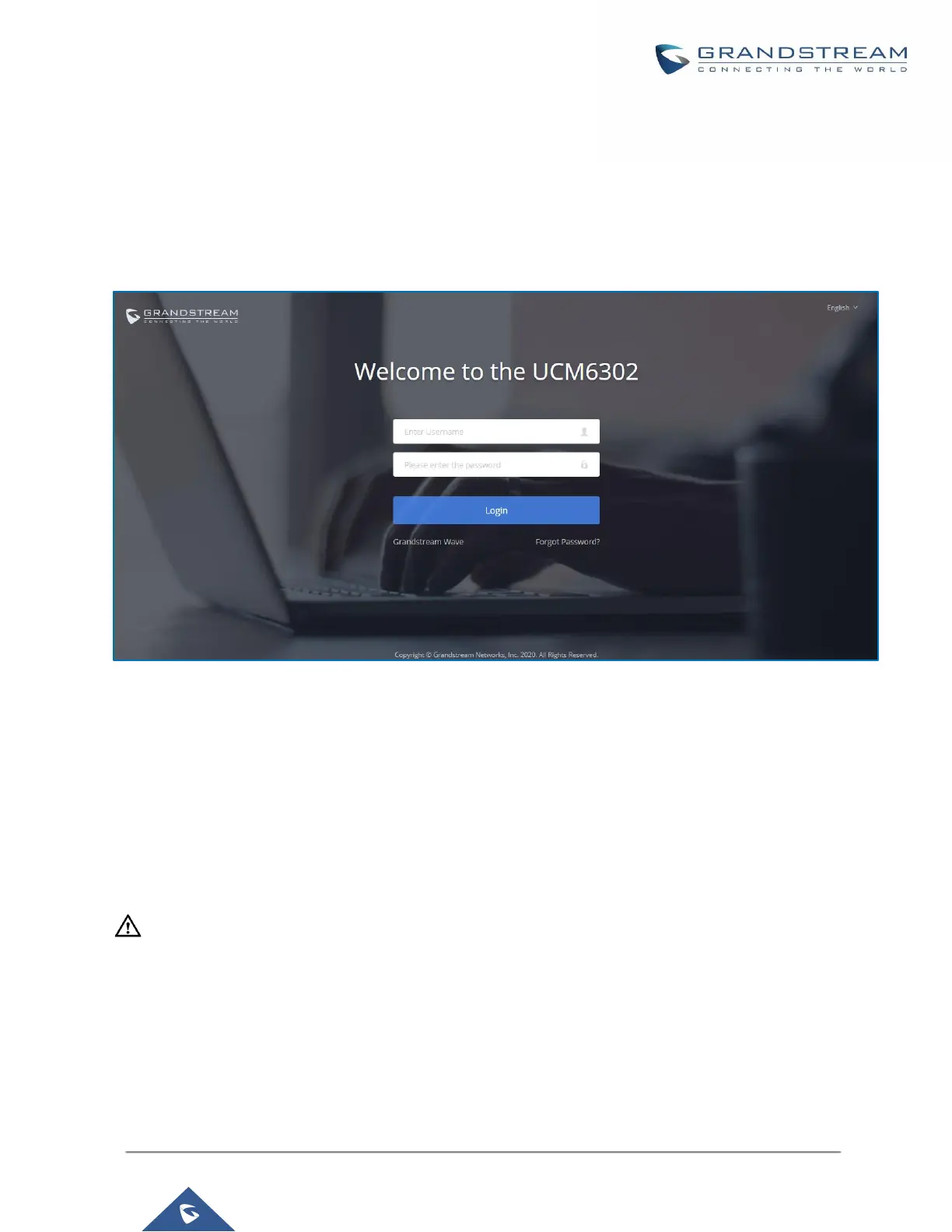

Figure 11: UCM6302 Web GUI Login Page
1. Make sure your computer is on the same network as the UCM.
2. Make sure that the UCM's IP address is displayed on its LCD.
3. Enter the UCM's IP address into a web browsers' address bar. The login page should appear (please
see the above image).
4. Enter default administrator username “admin” and password can be found on the sticker at the back of
the UCM.
---------------------------------------------------------------------------------------------------------------------------------------------------
Note:
By default, the UCM630X has Redirect From Port 80 enabled. As such, if users type in the UCM630X IP
address in the web browser, the web page will be automatically redirected to the page using HTTPS and port
8089. For example, if the LCD shows 192.168.40.167, and 192.168.40.167 is entered into the web browser, the
web page will be redirected to: https://192.168.40.167:8089
The option Redirect From Port 80 can be found under the UCM630X Web GUISystem SettingsHTTP
Server.
