In this network, by default the IP phones in network 192.168.69.0 are unable to call IP phones in network
192.168.66.0 when registered on different interfaces on the UCM6304. Therefore, we need configure a static
route on the UCM6304 so that the phones in isolated networks can make calls between each other.

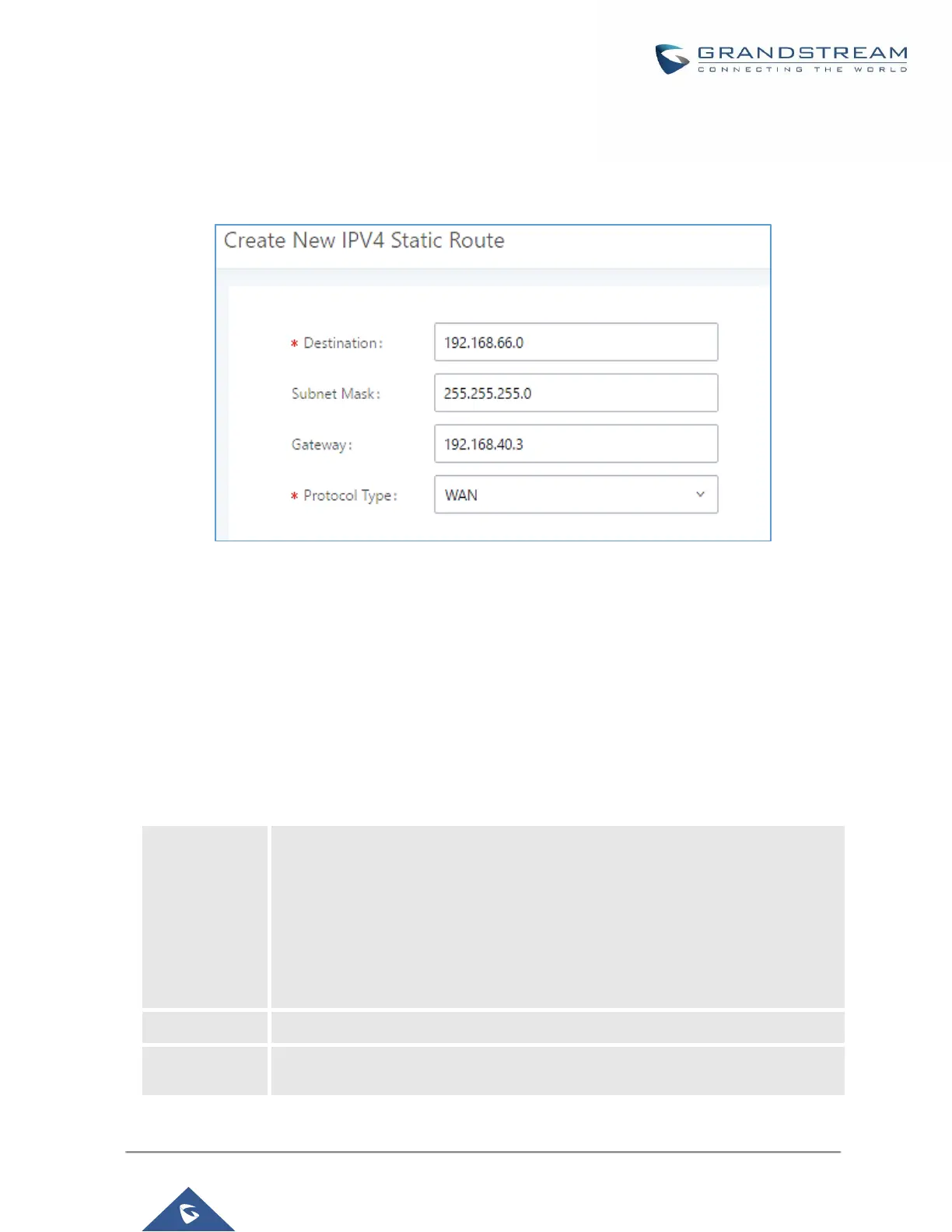

Figure 21: UCM6304 Static Route Configuration
Port Forwarding
The UCM network interface supports router function which provides users the ability to do port forwarding. If
LAN mode is set to "Route" under Web GUISystem SettingsNetwork SettingsBasic Settings page,
port forwarding is available for configuration.
The port forwarding configuration is under Web GUISystem SettingsNetwork SettingsPort Forwarding
page. Please see related settings in the table below.
Table 9: UCM630X Network SettingsPort Forwarding
WAN Port
Specify the WAN port number or a range of WAN ports. Unlimited number of
ports can be configured.
Note:
When it is set to a range, WAN port and LAN port must be configured with the
same range, such as WAN port: 1000-1005 and LAN port: 1000-1005, and
access from WAN port will be forwarded to the LAN port with the same port
number, for example, WAN port 1000 will be port forwarding to LAN port 1000.
LAN IP
Specify the LAN IP address.
LAN Port
Specify the LAN port number or a range of LAN ports.
