P a g e | 419

UCM630X Series User Manual

Version 1.0.2.25

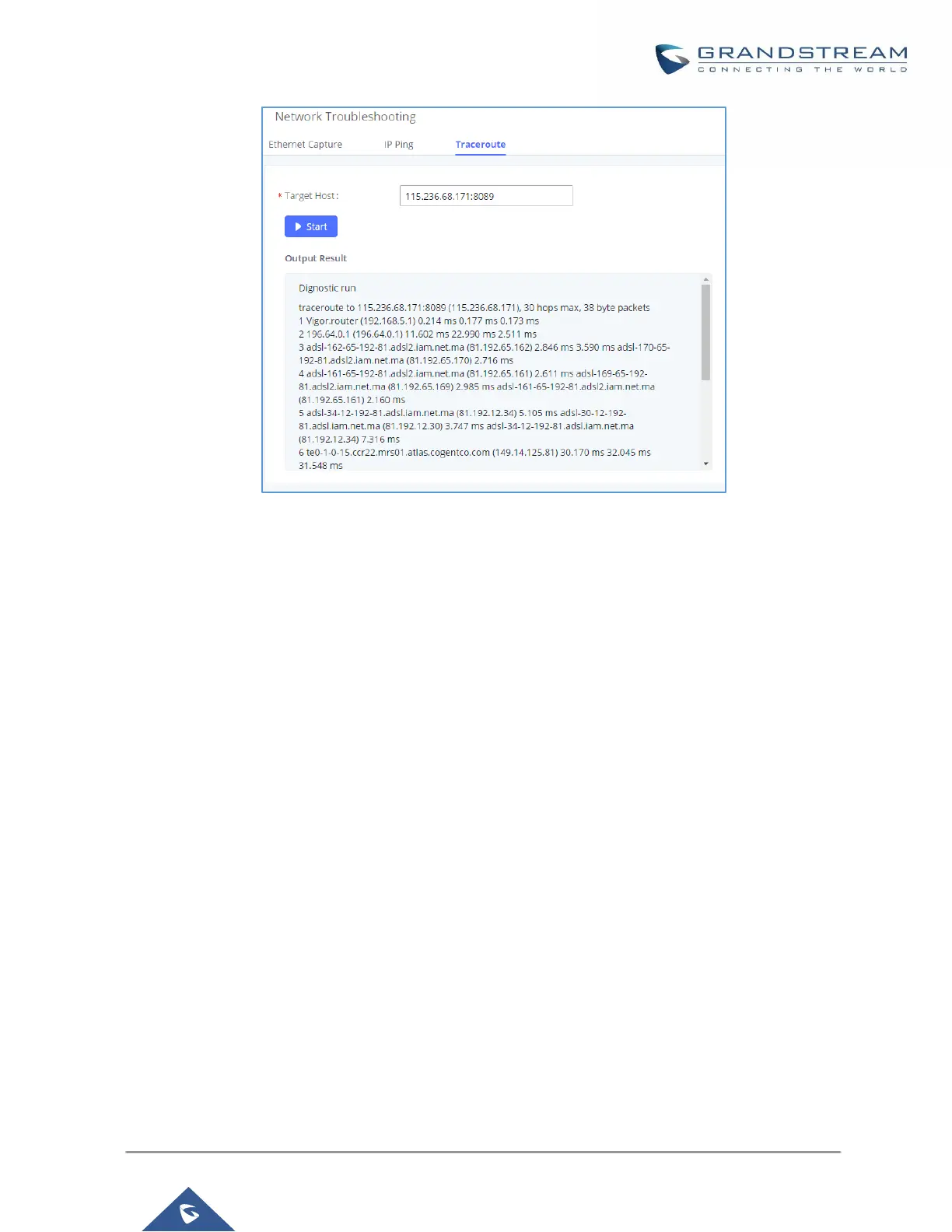

Figure 313: Traceroute

Signaling Troubleshooting

Analog Record Trace

 Analog Record Trace

Analog record trace can be used to troubleshoot analog trunk issue, for example, the UCM630X user has caller

ID issue for incoming call from Analog trunk. Users can access analog record trance under Web

GUIMaintenanceSignal Troubleshooting.

Here is the step to capture trace:

1. Select FXO or FXS for "Record Ports". If the issue happens on FXO 1, select FXO port 1 to record the

trace.

2. Click on "Start".

3. Make a call via the analog port that has the issue.

4. Once done, click on "Stop".

5. Click on "Download" to download the analog record trace.
