P a g e | 186
UCM630X Series User Manual
Version 1.0.2.25
first coming in on the shared line. No delay is set by default. If set to 0, there will
be no delay.
This option defines the competence of the hold action for one particular trunk. If
set to “open”, any station could hold a call on that trunk or resume one held
session; if set to “private”, only the station that places the trunk call on hold could
resume the session. The default setting is “open”.
Sample Configuration

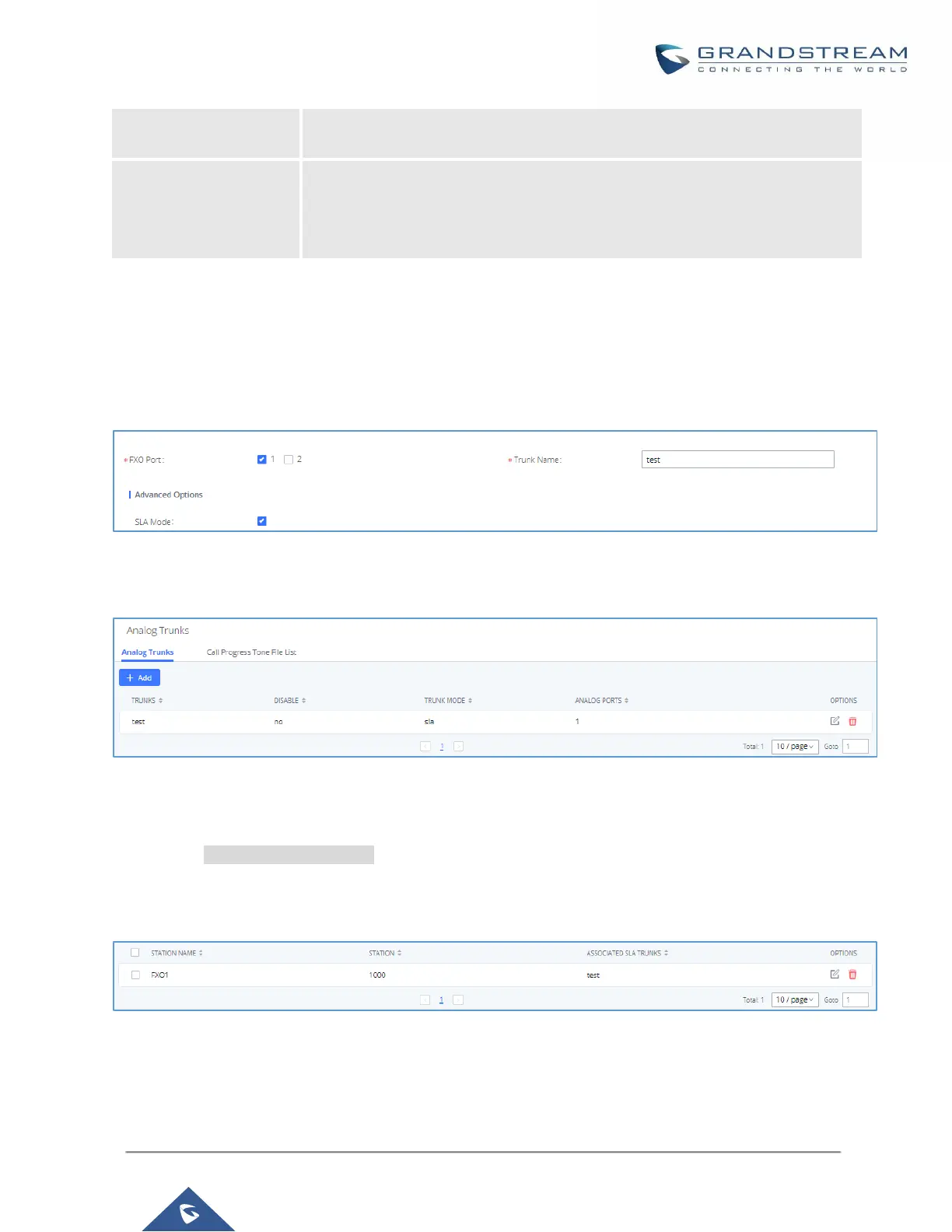

1. On the UCM630X, go to Web GUIExtension/TrunkAnalog Trunks page. Create analog trunk or edit
the existing analog trunk. Make sure “SLA Mode” is enabled for the analog trunk. Once enabled, this analog
trunk will be only available for the SLA stations created under Web GUIExtension/TrunkSLA Station
page.
Figure 101: Enable SLA Mode for Analog Trunk
2. Click on “Save”. The analog trunk will be listed with trunk mode “SLA”.
Figure 102: Analog Trunk with SLA Mode Enabled
3. On the UCM630X, go to Web GUIExtension/TrunkSLA Station page, click on “Add”. Please refer to
section [Create/Edit SLA Station] for the configuration parameters. Users can create one or more SLA
stations to monitor the analog trunk. The following figure shows two stations, 1002 and 1005, are configured
to be associated with SLA trunk “fxo1”.
Figure 103: SLA Example - SLA Station
4. On the SIP phone 1, configure to register UCM630X extension 1002. Configure the MPK as BLF mode and
the value must be set to “extension_trunkname”, which is 1002_fxo1 in this case.
