P a g e | 344

UCM630X Series User Manual

Version 1.0.2.25

4. Login to the UCM as user and navigate under “User PortalValue-added FeatureCRM User Settings”.

Click on “Enable CRM” and enter the username/password associated with the CRM account then click on

and . The status will change from “Logged Out” to “Logged In”. User can start then using

SugarCRM features.

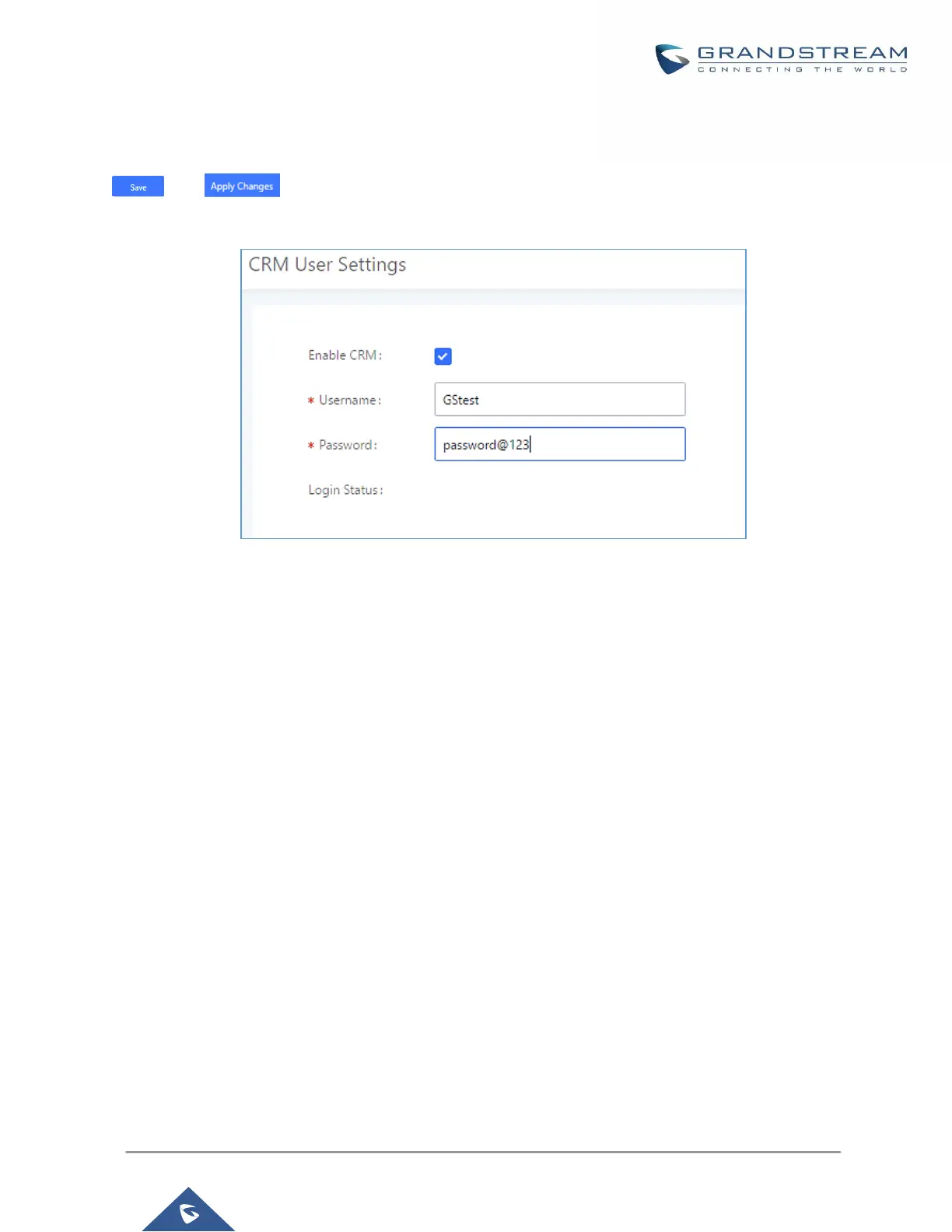

Figure 232: CRM User Settings

Table of Contents4
