P a g e | 411

UCM630X Series User Manual

Version 1.0.2.25

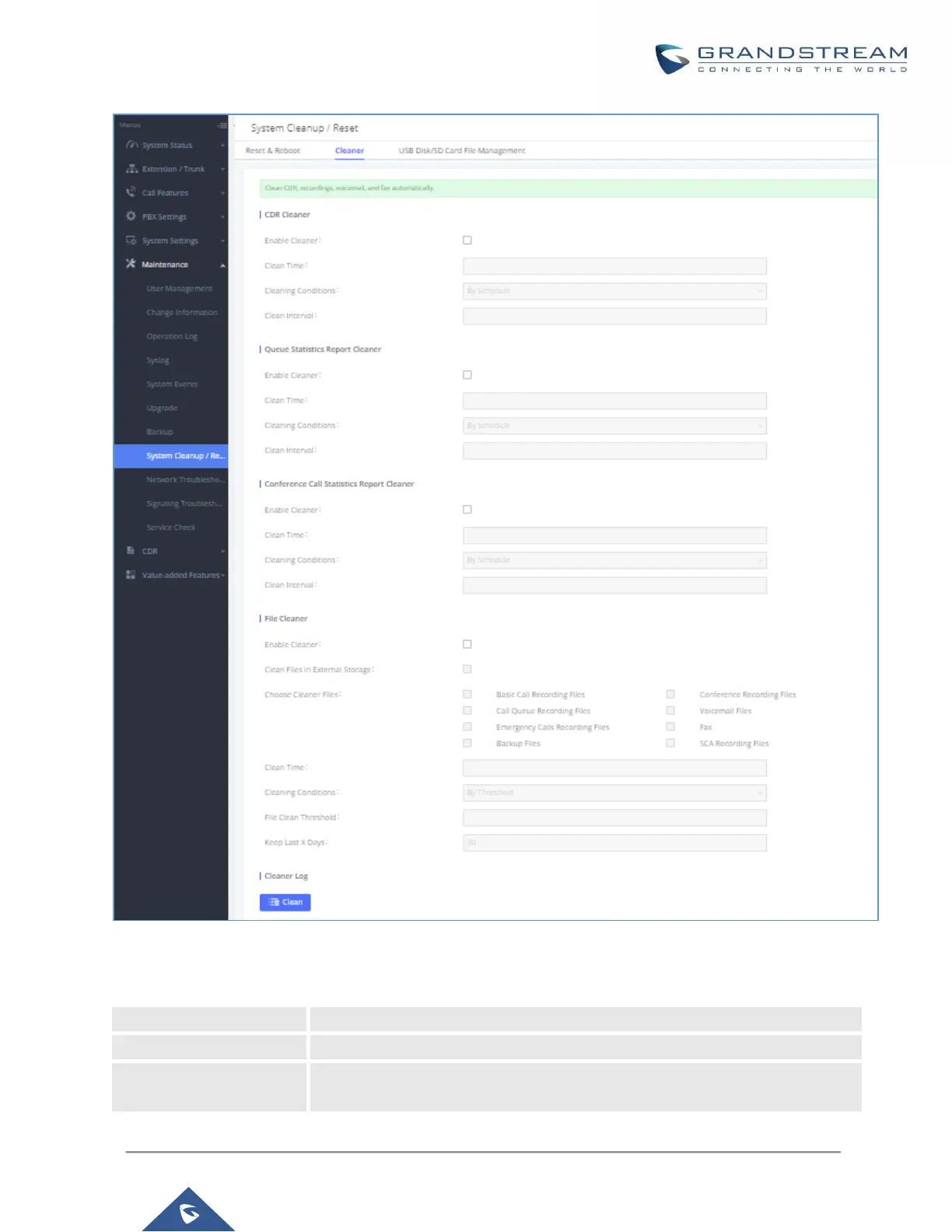

Figure 307: Cleaner

Table 144: Cleaner Configuration

Enable CDR Cleaner

Enable the CDR Cleaner function.

CDR Clean Time

Enter 0-23 to specify the hour of the day to clean up CDR.

Cleaning Conditions

By Schedule: If the clean interval is 3, cleaning will be performed every 3

days to remove all records that were generated 3 days ago.
