GW Instek GDM-906 Series User Manual

DIGITAL I/O
119
Compare
live-result in
MathDisp

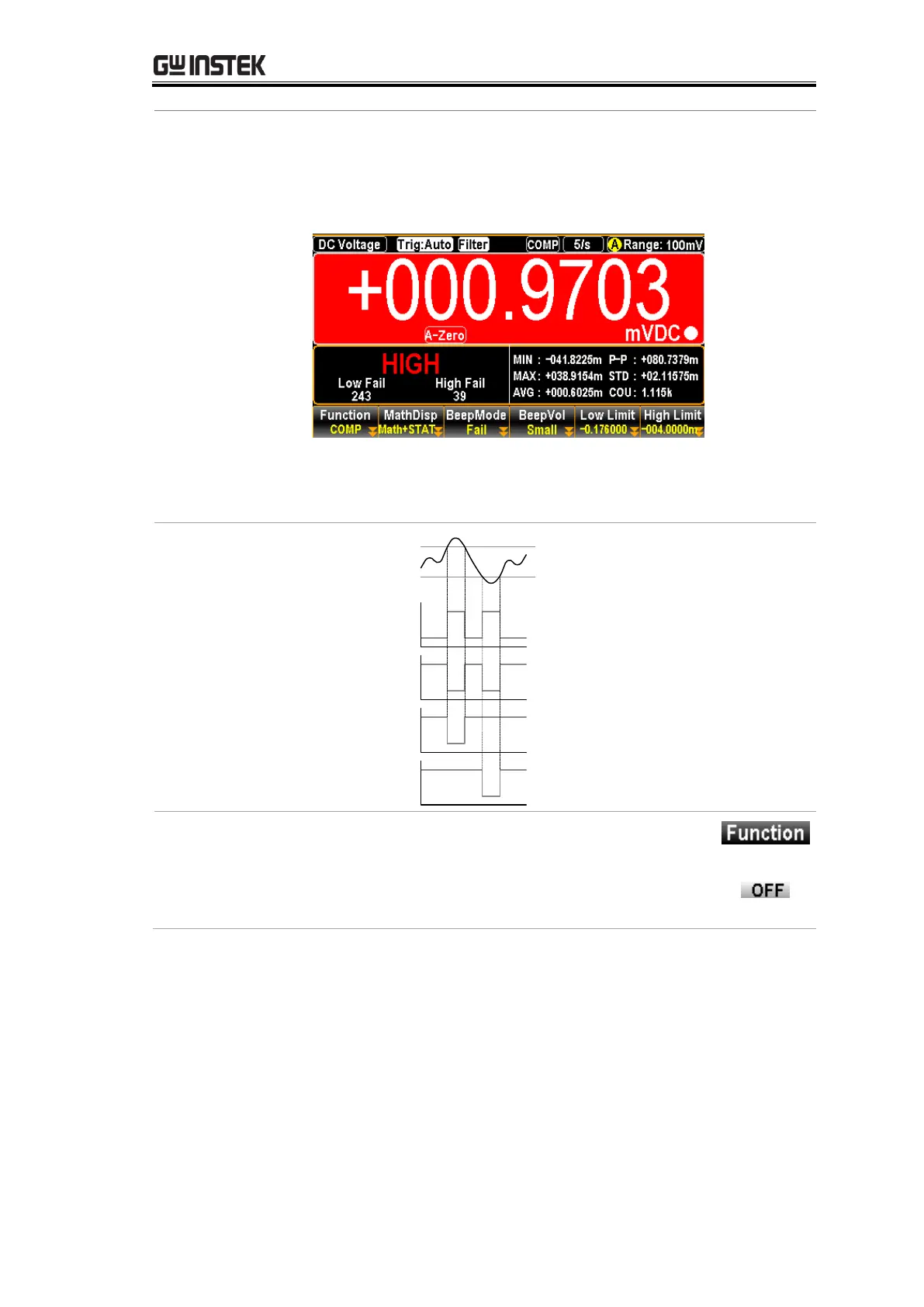

The latest state of compare measurement, whether it’s
“Pass”, “High” or “Low”, will also appear within each
mode of MathDisp. See the example below for the “High”
result in Math+STAT mode.
The boldly red background along with the indicator
“HIGH” within the display means the compare result is
over the range of defined high limit.
Timing Diagram
for pins 5-8 when
the Compare
function is
activated
Low limit
High limit
P P P
F F
H
L
Pin 5
PASS Out
Pin 6
FAIL Out
Pin 7 HIGH
Limit FAIL Out
Pin 8 LOW
Limit FAIL Out
Pin 5-8 Output
Compare On
Deactivate
Compare
measurement
To cancel the Compare measurement, press the
F1 (Function) key followed by clicking F1
(OFF) to deactivate or simply activate another
measurement.
