Compare Mode
Applicable to
Background
The Compare mode checks and updates if measurement data
stays between the specified upper (high) and lower (low) limit.
Activate
Compare
mode

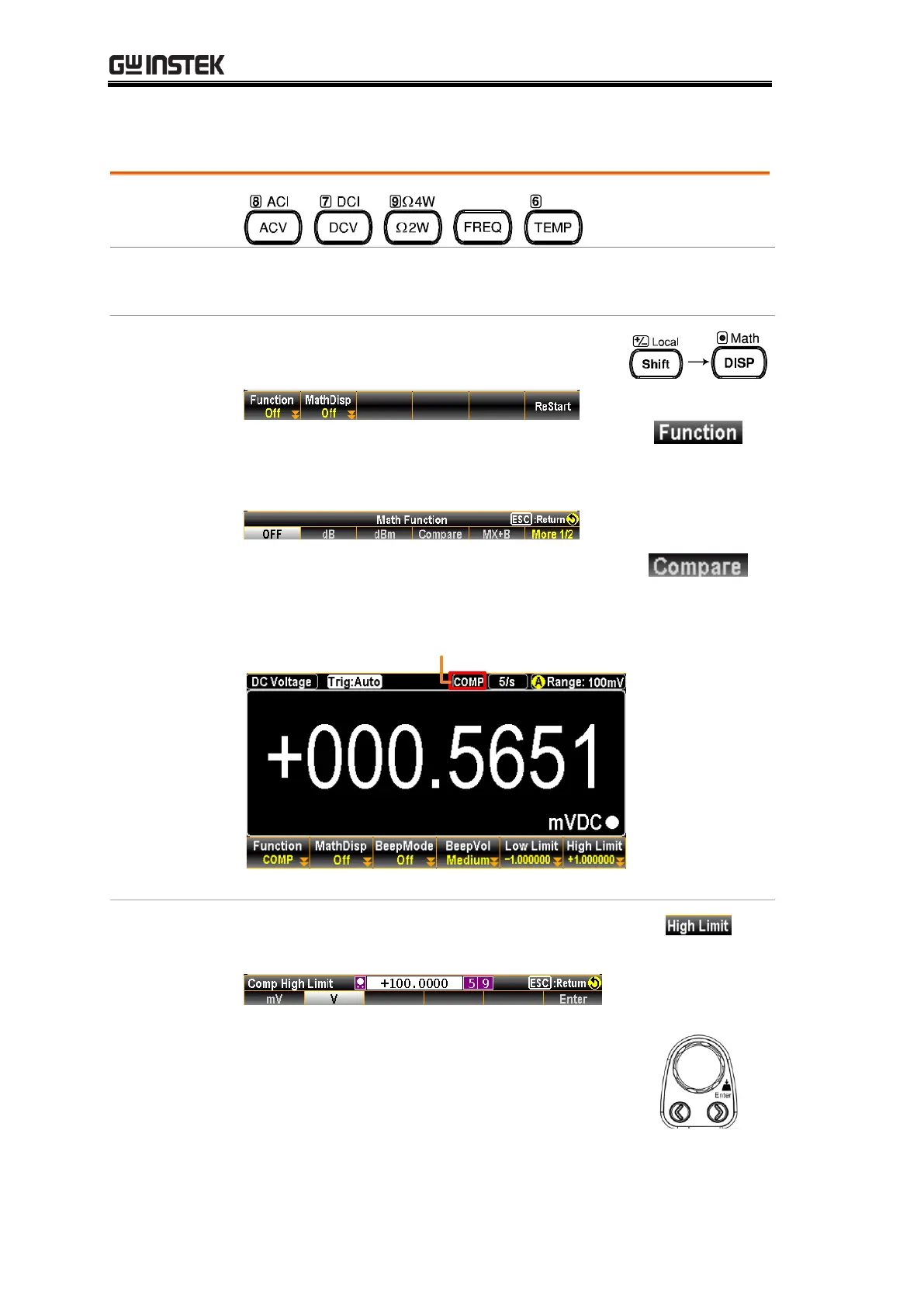

Press the Shift + Math key to activate Math
setting menu as the following figure shown.
Further press the F1 (Function) key to enter
the Math Function menu as the figure
shown below.
Press F4 (Compare) key to enable the
Compare function. The screen, after
activation, will appear as figure below.
Indicator Compare On
F6 (High
Limit) to set
high limit
Press the F6 (High Limit) key to enter the
setting menu.
First use the functions keys to determine the
unit, which varies by different measure
modes. Then use the Left/Right arrow keys
to move cursor and scroll the Knob key or
press Number Keys to enter the desired
value of high limit.
