BASIC MEASUREMENT
59

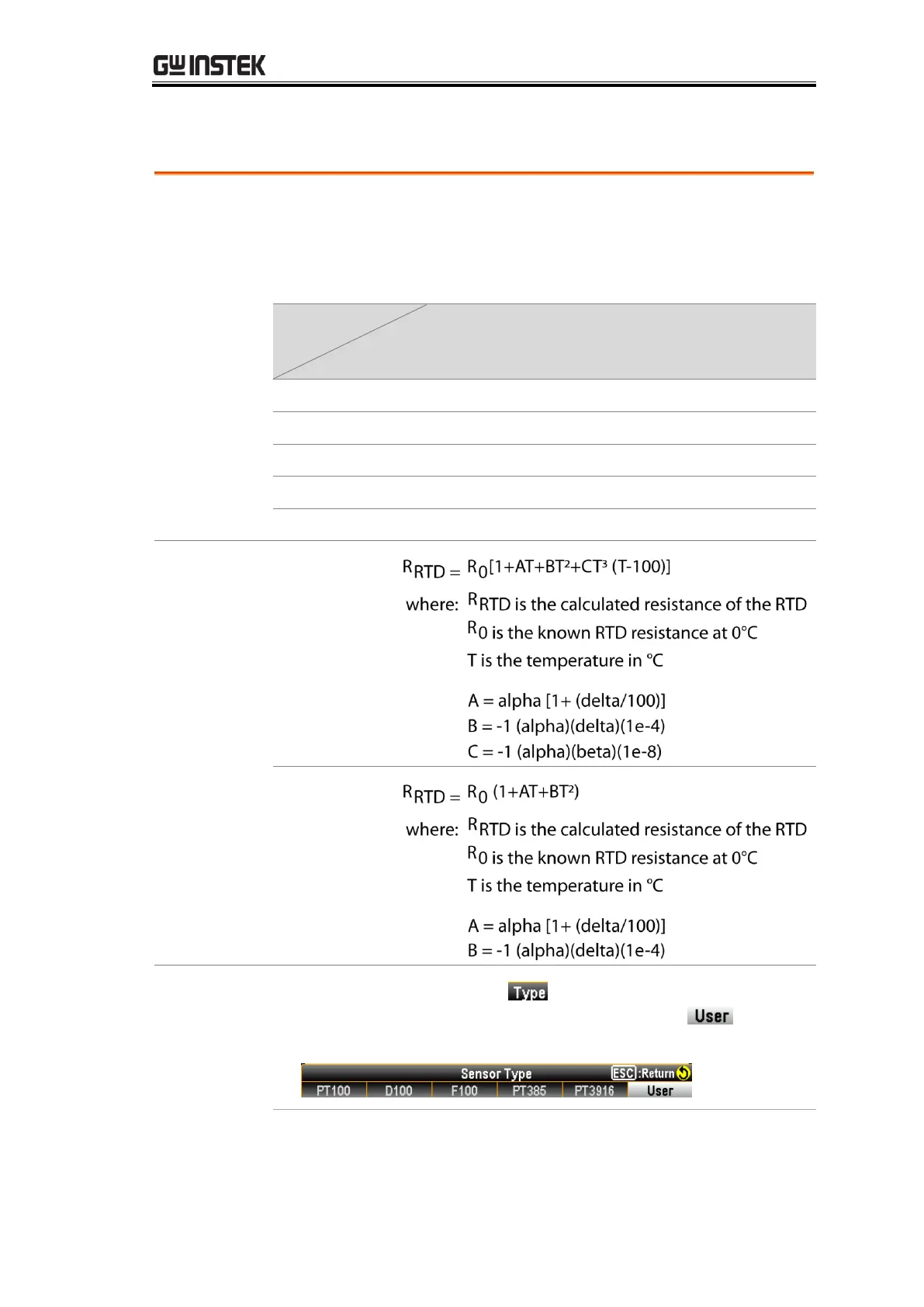

Set User Type of RTD 2W/4W
Background
The User Type allows any customized RTD sensor coefficients
to be used. The User Type is available for user to configure the
alpha, beta, delta and R0 coefficients individually, as defined by
the Callendar–Van Dusen equation.
Type
Coefficient
Alpha (α)
Beta (β)
Delta (δ)
PT100
0.00385
0.10863
1.49990
D100
0.00392
0.10630
1.49710
F100
0.00390
0.11000
1.49589
PT385
0.00385
0.11100
1.50700
PT3916
0.00392
0.11600
1.50594
Equation
-200°C to 0°C
range
-0°C to 630°C
range
Operate
Procedure
1. Press the F5 (Type) key to enter the Sensor Type
menu followed by pressing the F6 (User) key to
activate User Type.
