GDM-906X Series User Manual
18

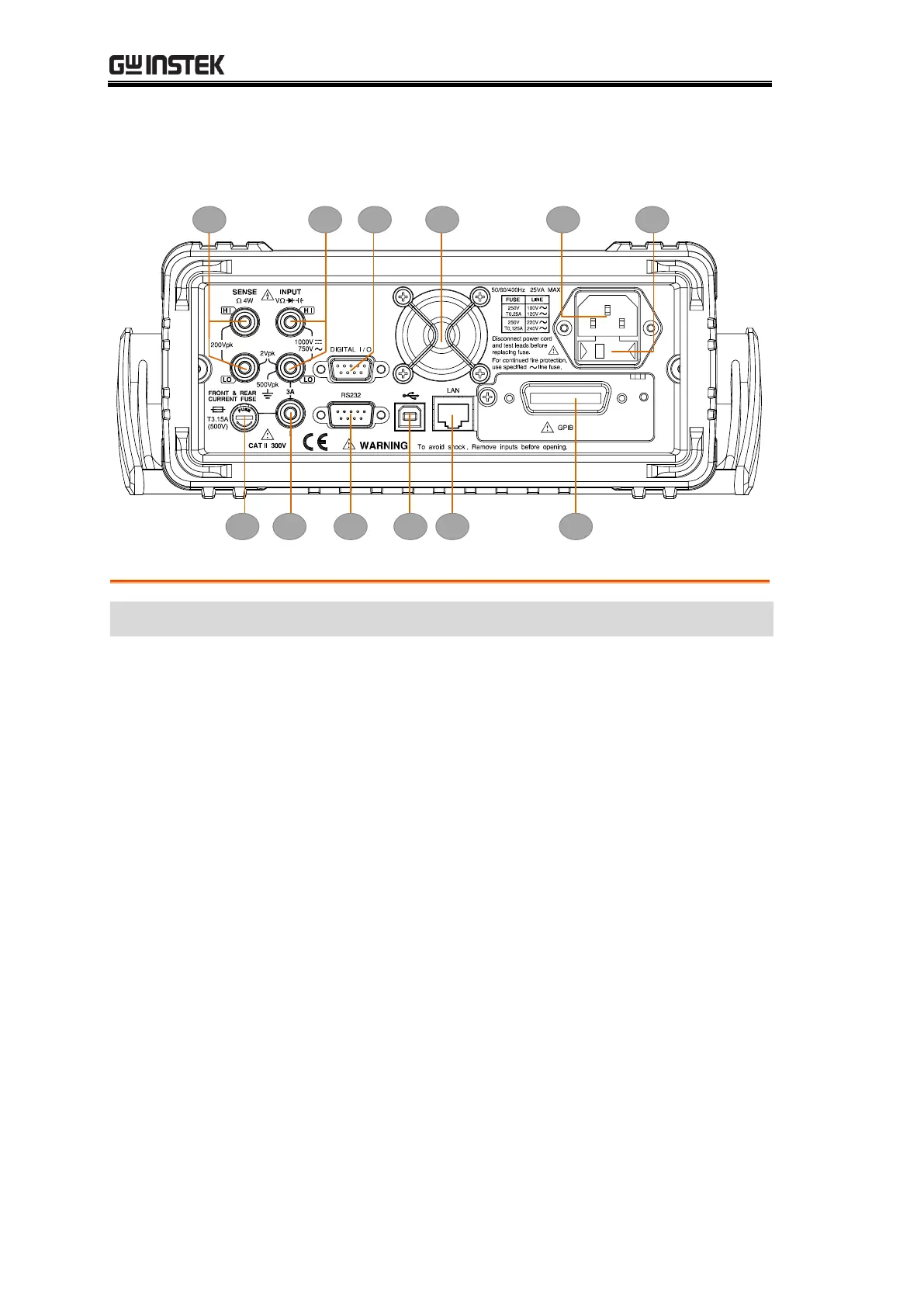

Rear Panel Overview
1
240
2 5 9 0 A
4 3 6 7 8 B
Item
Description
1
HI and LO Sense Terminals (GDM-9061 only)
2
HI and LO Input Terminals (GDM-9061 only)
3
3 A Current Terminal (GDM-9061 only)
4
3 A Current Terminal Fuse
5
DIGITAL I/O Connector
6
RS-232 Interface Connector
7
USB Interface Connector (B Type)
8
Ethernet (LAN) Connector
9
Fan Vents
0
AC Mains Input (Power Cord Socket)
A
AC Mains Line Voltage Selector and Fuse Socket
B
GPIB Connector (optional)
