GW Instek GDM-906 Series User Manual

GETTING STARTED
19

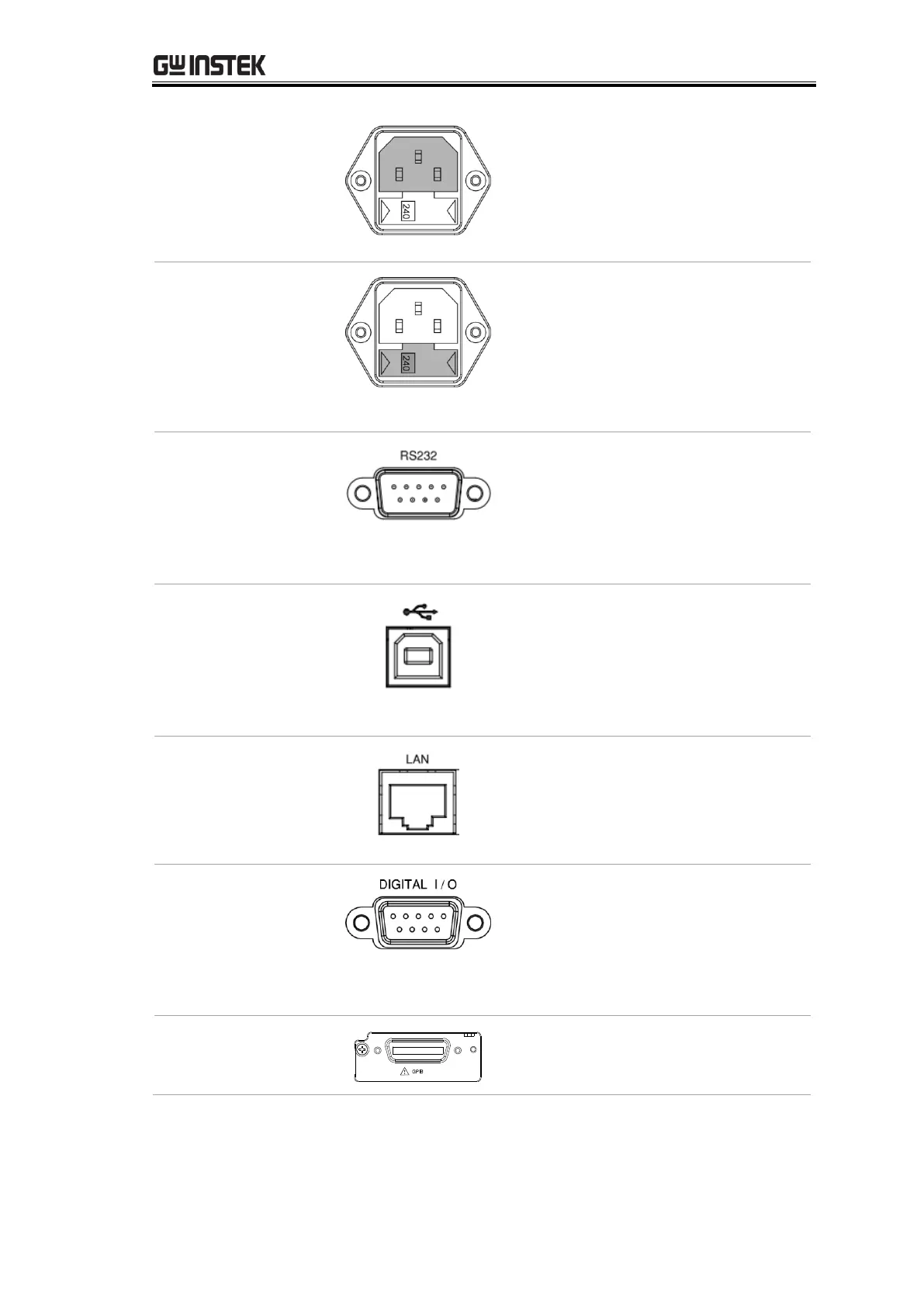

Power Cord Socket
Accepts the power cord. AC
100/120/220/240V ±10%,
50Hz / 60Hz /400Hz ±10%.
For power on sequence, see page
25.
Fuse Socket
Holds the main fuse:
100/120 VAC: T0.25A
220/240 VAC: T0.125A
For fuse replacement details, see
page 332.
RS-232C port
Accepts an RS-232C cable for
remote control; DB-9 male
connector.
For remote control details, see
page 205.
USB device port
Accepts a USB device cable for
remote control; Type B, female
connector.
For remote control details, see
page 202.
LAN port
Accepts a LAN for remote
control;
For remote control details, see
page 216.
Digital I/O port
Accepts a digital I/O cable for the
Hi/Lo limit tests; DB-9 pin,
female connector.
For digital I/O details, see page
110.
Optional GPIB port
Accepts an optional GPIB card.
For GPIB details, see page 213.
