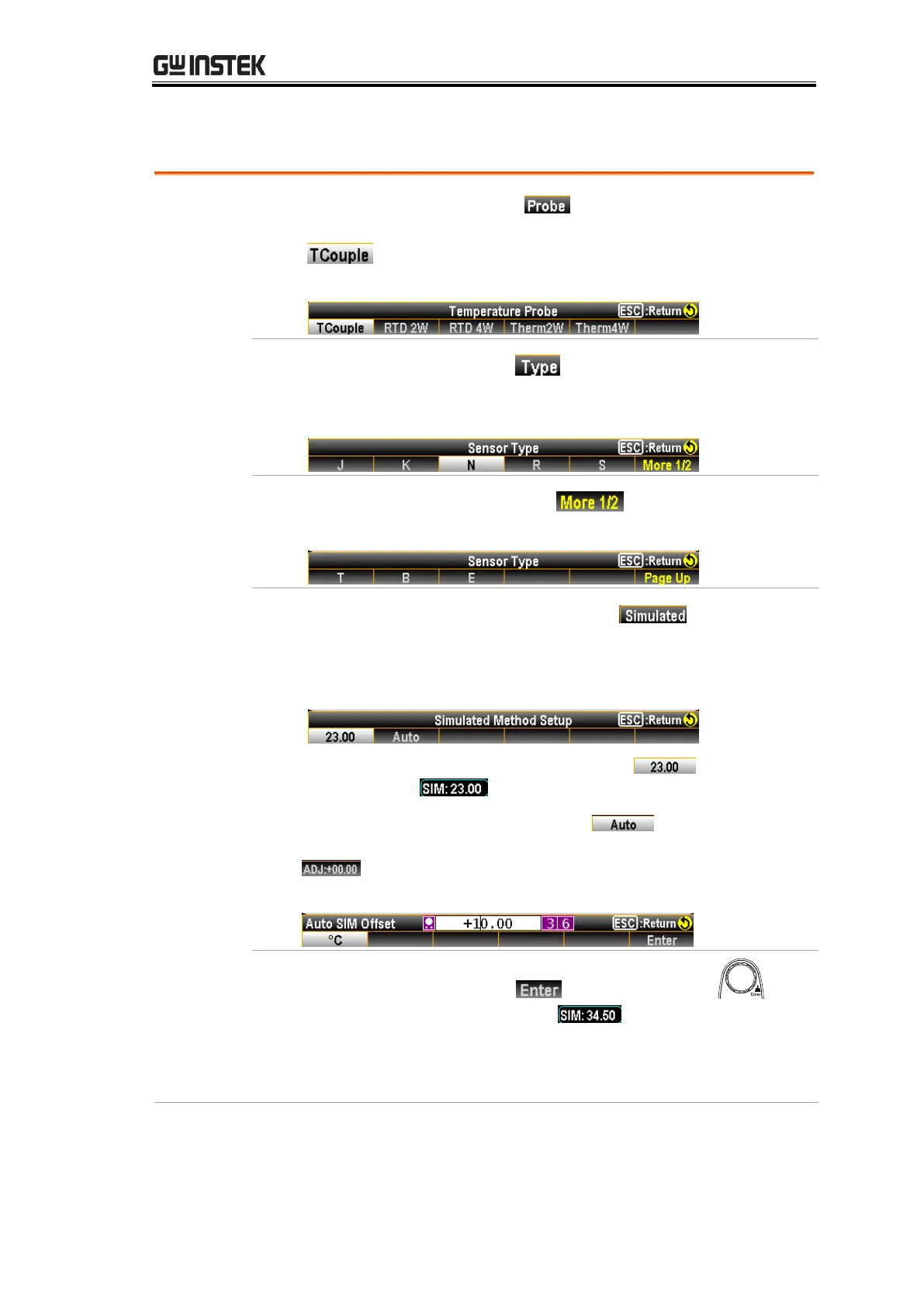

Thermocouple Setting
1. Press the F1 (Probe) key to enter the Temperature
Probe menu followed by clicking the F1 (TCouple) key
to activate Thermocouple mode. See the figure
shown below.
2. Press the F5 (Type) key to enter the Sensor Type
menu as the figure shown below. Click the F1 – F5 key to
select a desired sensor type per situations.
3. Press the F6 (More 1/2) key to enter the next
page with more sensor types available for selection.
4. Further press the F6 (Simulated) key after
returning to the previous menu page. You can select either
the default fixed “23.00” or the “Auto” option for the so-called
“Reference Junction Temperature” as following.
When selecting “23.00” by F1 (23.00) key , the display
shows an icon indicating the simulated baseline is 23°C.
If choosing “Auto” by F2 (Auto) key , the subset menu
appears with additional option. Press the F3 (ADJ:+00.00) key
followed by inputting a desired parameter as the following
figure (+10 for example).
5. Press the F6 (Enter) key or the Knob key to
confirm the setting. The icon appears on display
indicating the simulated 34.5 °C, which derives from the input
terminal temperature plus the defined +10 degrees. That is, the
input terminal temperature is 34.5 – 10 = 24.5 °C.
