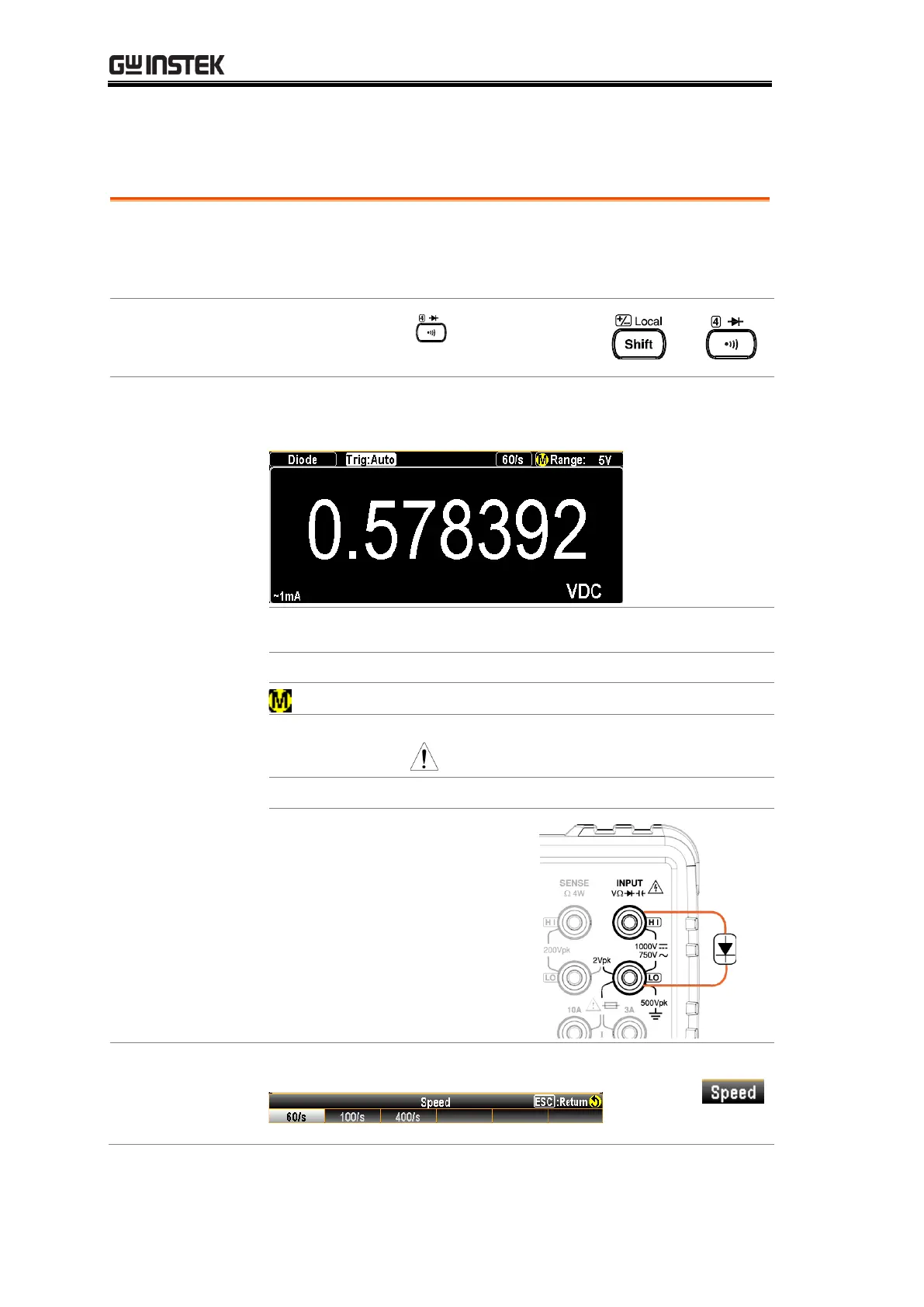

Diode Measurement
The diode test checks the forward bias characteristics of a
diode by running a constant forward bias current of
approximately 1mA through the DUT.
Press the Shift+ key to activate
diode measurement.
Diode mode
display appears
The screen will switch to Diode mode immediately as the
figure shown below.
Indicates the Diode measurement
Indicates the active refresh rate
Indicates Manual range selection
Indicates the available range of Diode
Note: the range selection is fixed in 5V
Indicates the exact measured value
Connect the test
lead and measure
Connect the test lead between
the Input HI terminal and the
LO terminal; Anode-V,
Cathode-COM. The display
updates the reading.
F2 (Speed) key to
select the rate.
Press the F1 ~ F3 key to select the desired rate
To Next Page
