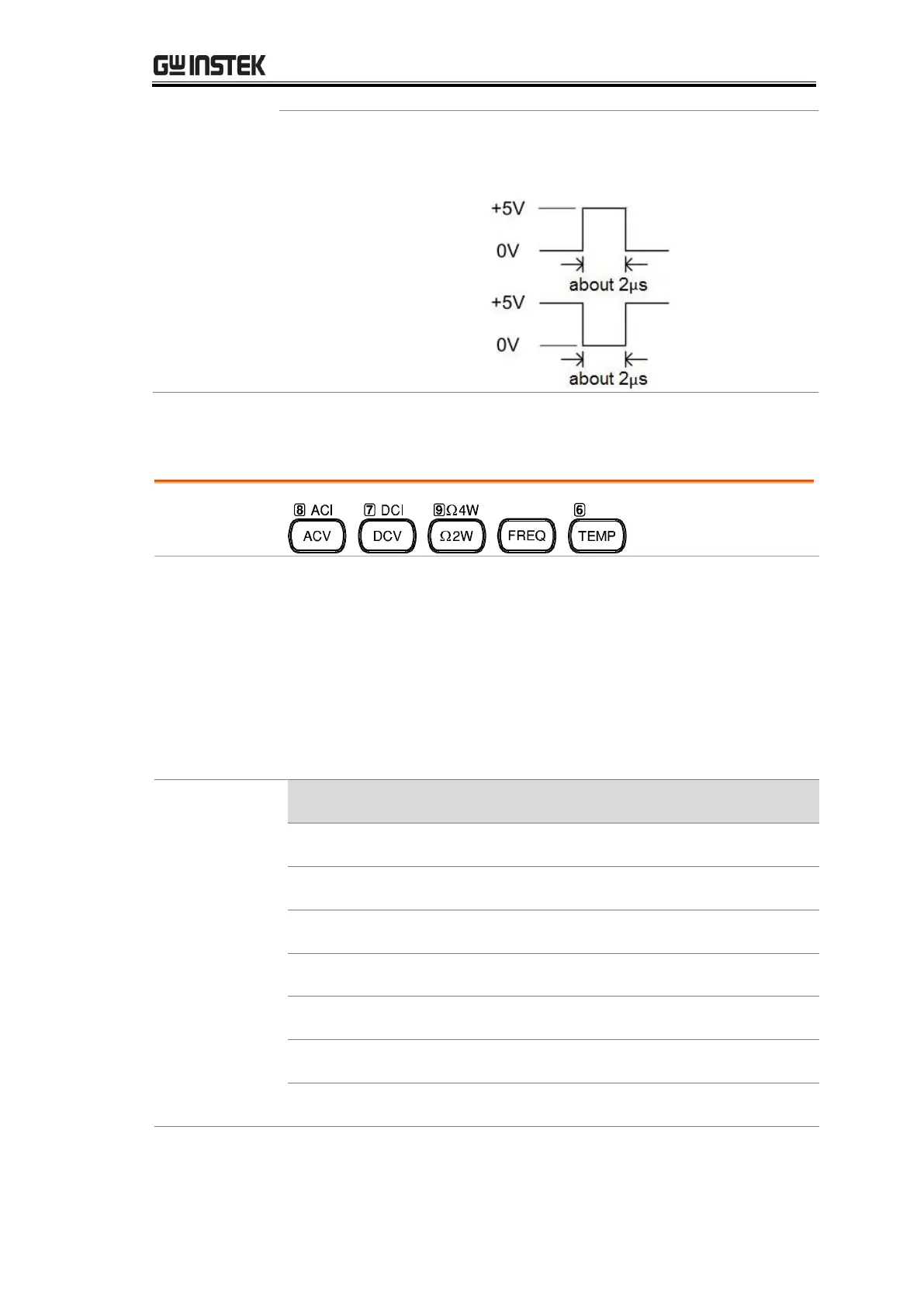

EOM (End Of Measurement) signal Output.
Activates when compare measurement is over.
It is also available in other measurements.
The Compare Mode outputs the pass/fail results of the
Compare function. Each signal is an active low signal. In
addition, an active low pulse of approximately 2µs is output to
indicate the end of compare measurement (EOM).
When the input signal exceeds the high threshold or the low
threshold, the High Fail or Low Fail pin is pulled low. When
the signal stays within the threshold levels, the Pass pin is
pulled low.
