GW Instek GDM-906 Series User Manual

GDM-906X Series User Manual
182

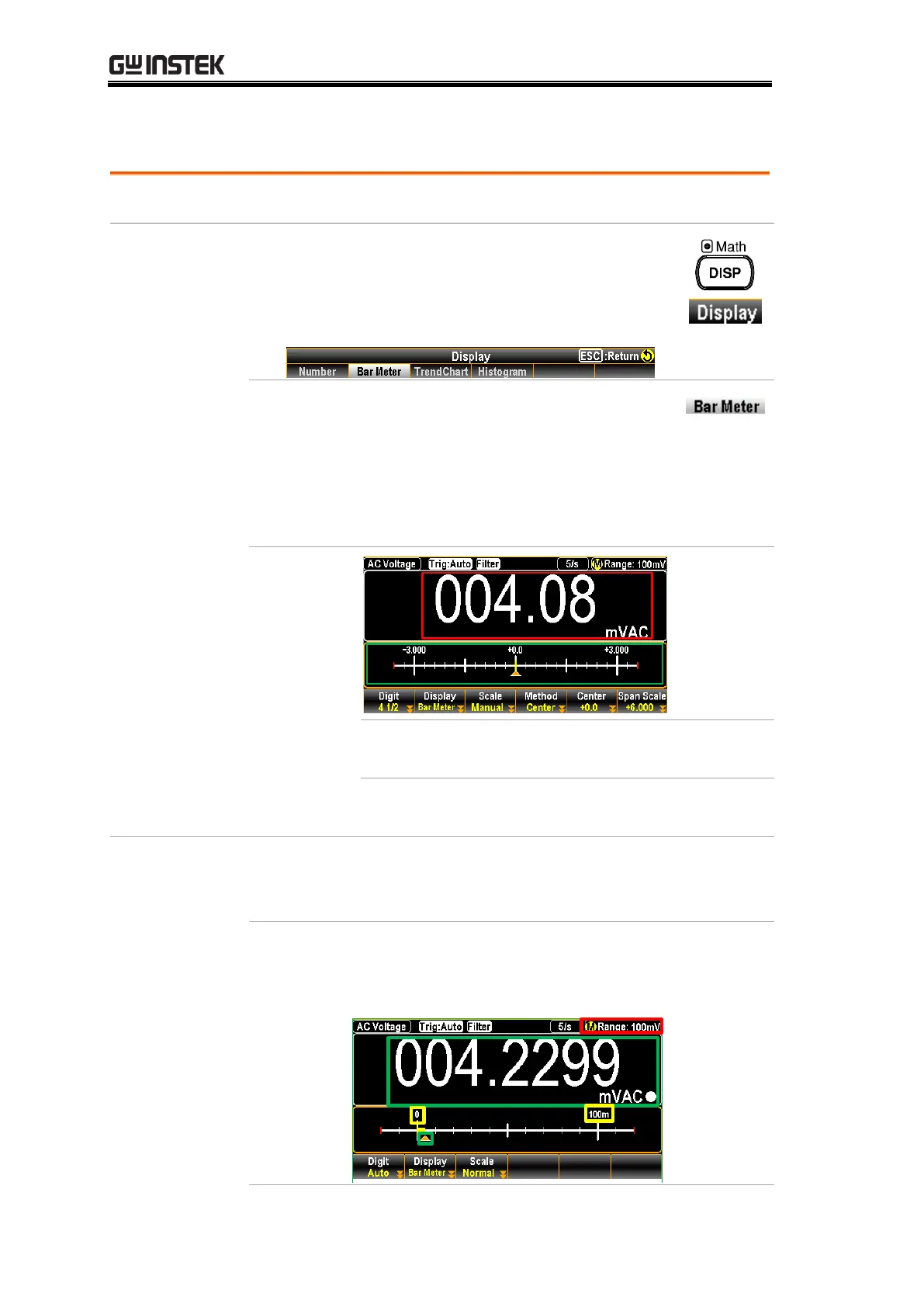

Bar Meter
Background
Shift to the Bar Meter display for each measurement.
Step
1. Press the DISP key followed by clicking the
F2 (Display) key, the Display menu appears
where several display options are available for
selection.
2. Press the F2 (Bar Meter) key, the screen
shows the Bar Meter mode for measurement
display. The measured value is presented in
the bar meter way for viewing, along with the
maximum digits display depending on the
Digit selection.
Display
Red Sect.
It indicates the currently measured
value in number display.
Green Sect.
It indicates the currently measured
value in bar meter display.
F3 (Scale) key
to decide
scale mode
Backgro
und
Press the F3 (Scale) key to enter the Scale Mode
menu where Normal and Manual options are
available for selection.
Normal
Selecting “Normal” allows the scale of meter bar
to be symmetric with the selected range of
measurement.
