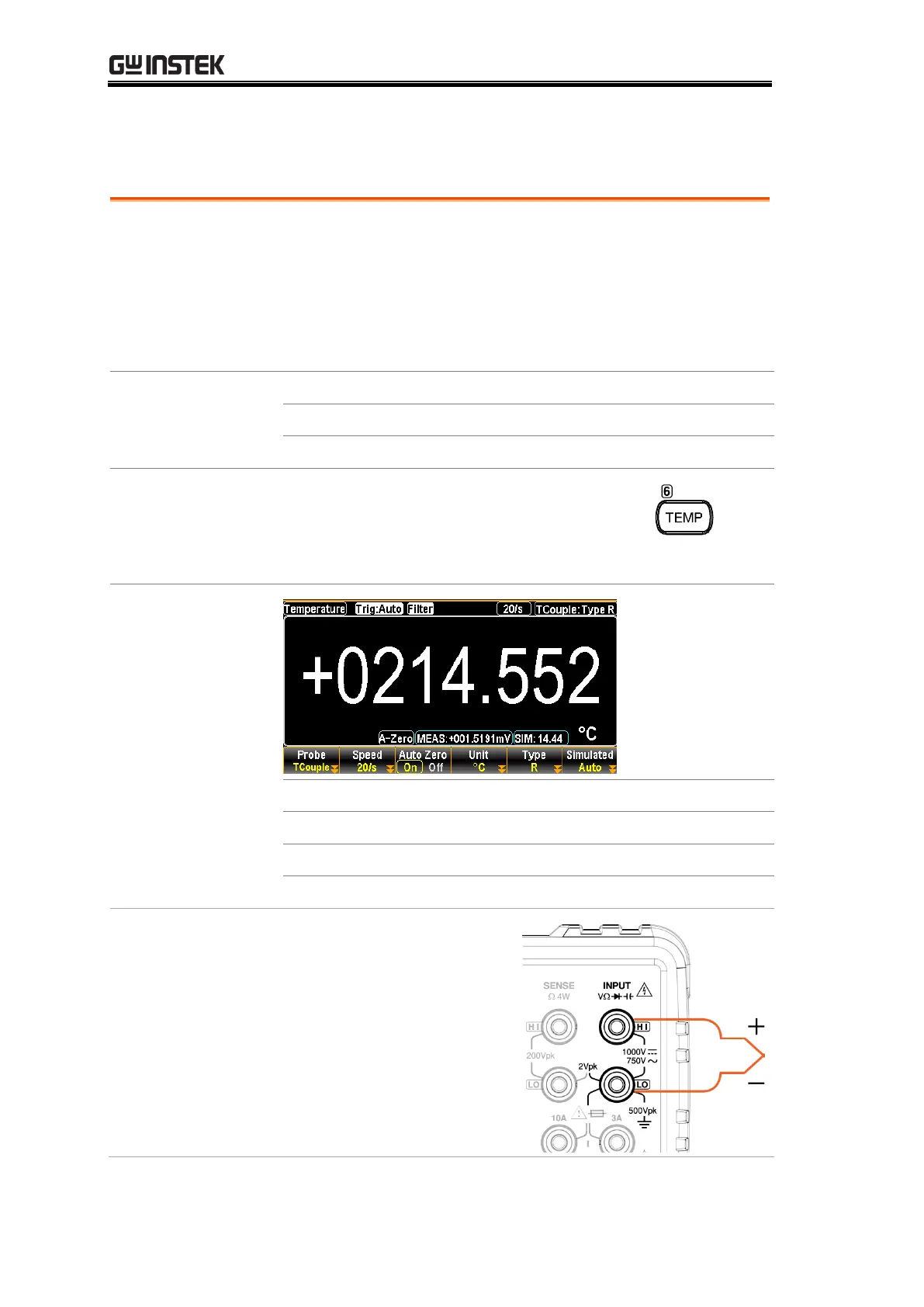

Temperature Measurement
Background
The GDM-9060/9061 can measure temperature utilizing
several devices including Thermocouple, RTD
(Resistance Temperature Detector) as well as Thermistor.
To measure temperature, the GDM-9060/9061 accepts a
device input and calculates the temperature from the
voltage fluctuation.
Temperature
Range
Thermocouple
-200°C ~ +1820°C (vary by sensor types)
RTD
-200°C ~ +630°C
Thermistor
-80°C ~ +150°C
Activate
temperature
measurement
Press the TEMP key to activate
temperature measurement.
Temperature mode
display appears
Temperature
Indicates Temperature measurement
+ 0214.552 °C
Indicates the exact measured value
T Couple
Indicates the active Probe
Type R
Indicates the active Type
Connect the test
lead and measure
Connect the sensor lead
between the Input HI
terminal and the LO
terminal. The display
updates the reading.
