GW Instek GDM-906 Series User Manual

GETTING STARTED
13

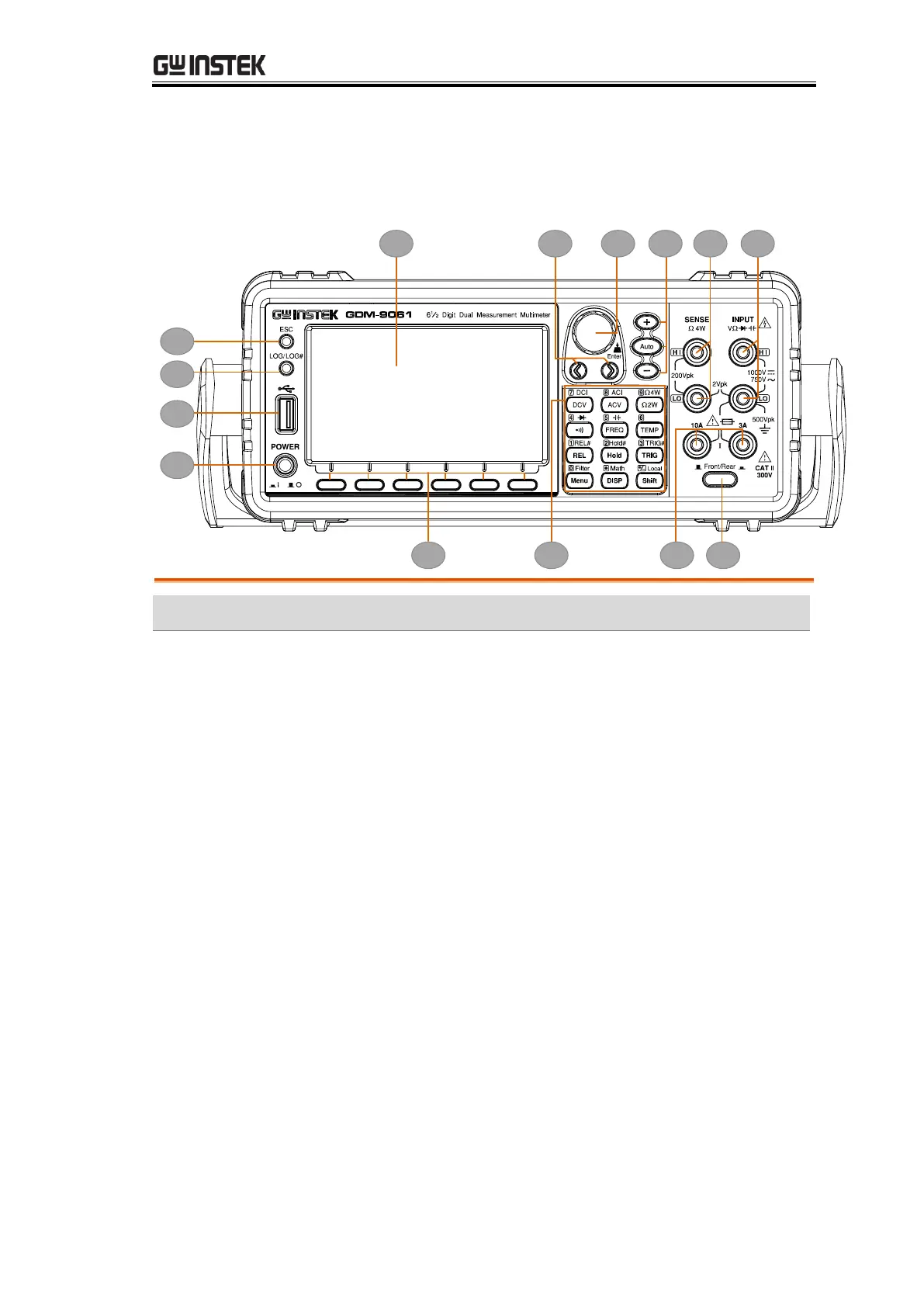

Front Panel Overview
1
2
3
4
5 8 7 0 A B
6 9 C D
Item
Description
1
ESC (Escape) Key
2
Print screen / Data log Key
3
USB Host Port
4
Power Switch
5
Main Display
6
Function keys (F1 through F6, functions vary per modes)
7
Knob key
8
Arrow Keys
9
Measurement Keys
0
Range Selection Keys
A
HI and LO Sense Terminals
B
HI and LO Input Terminals
C
AC/DC Current Input Terminals (10 A terminal available on
GDM-9061 only)
D
Front/Rear Input Switch (GDM-9061 only)
