GW Instek GDM-906 Series User Manual

GETTING STARTED
21
Status Bar
Background

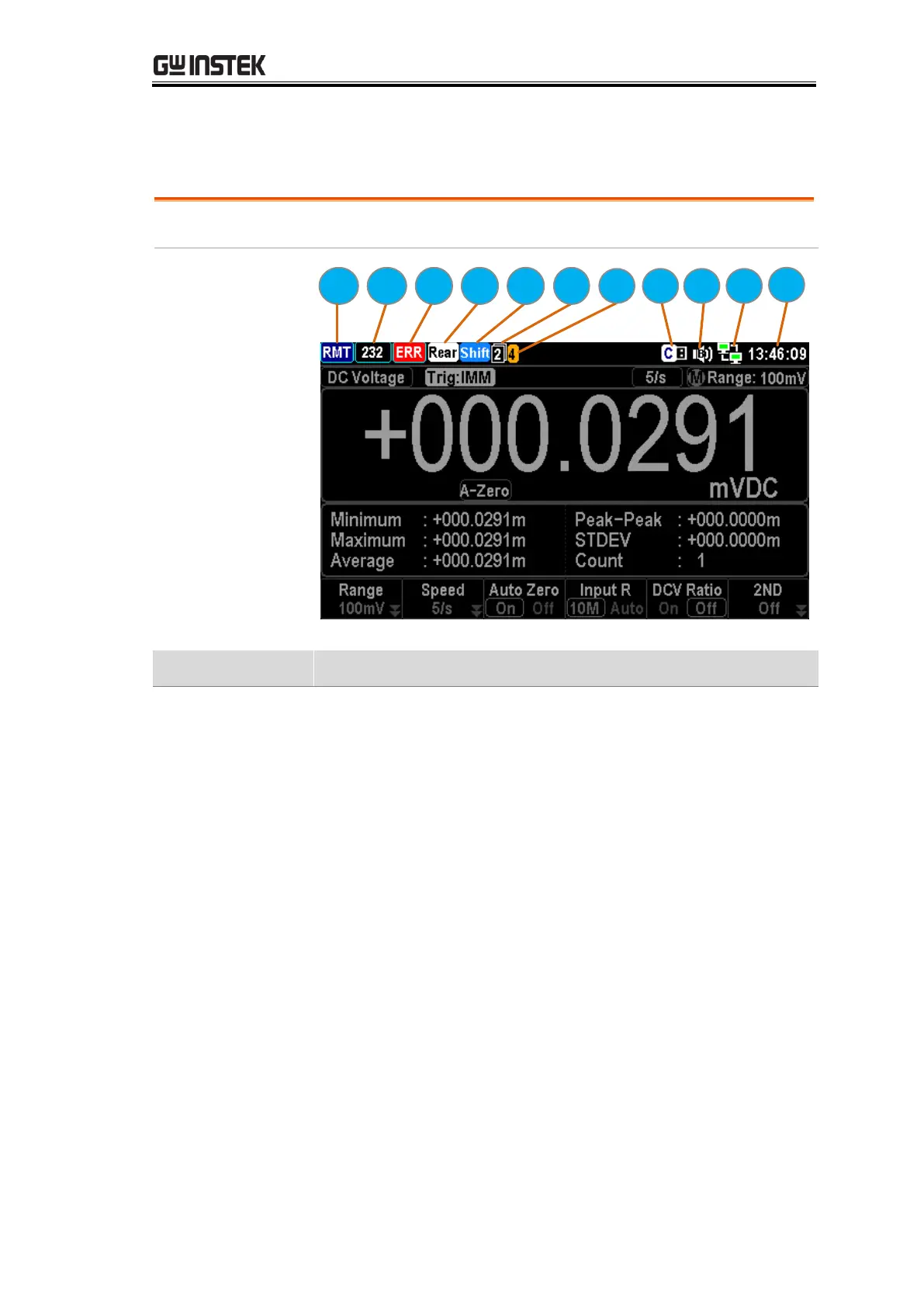

Identify each icon within the top status bar.
Status Bar
Display
1 2 3 4 5 6 7 8 9 0
A
Item
Description
1
Local/Remote control icon
2
RS-232/USB-CDC/USB-TMC/LAN/GPIB interface icon
3
Error icon for commands from remote control
4
Rear panel switch icon
5
Shift key identification icon
6
The first and second function menu switch icon
7
Digital I/O mode icon (User/4094)
8
USB flash drive connection icon
9
Beep/Key Sound setting icon
0
Internet connection status icon
A
Time display
