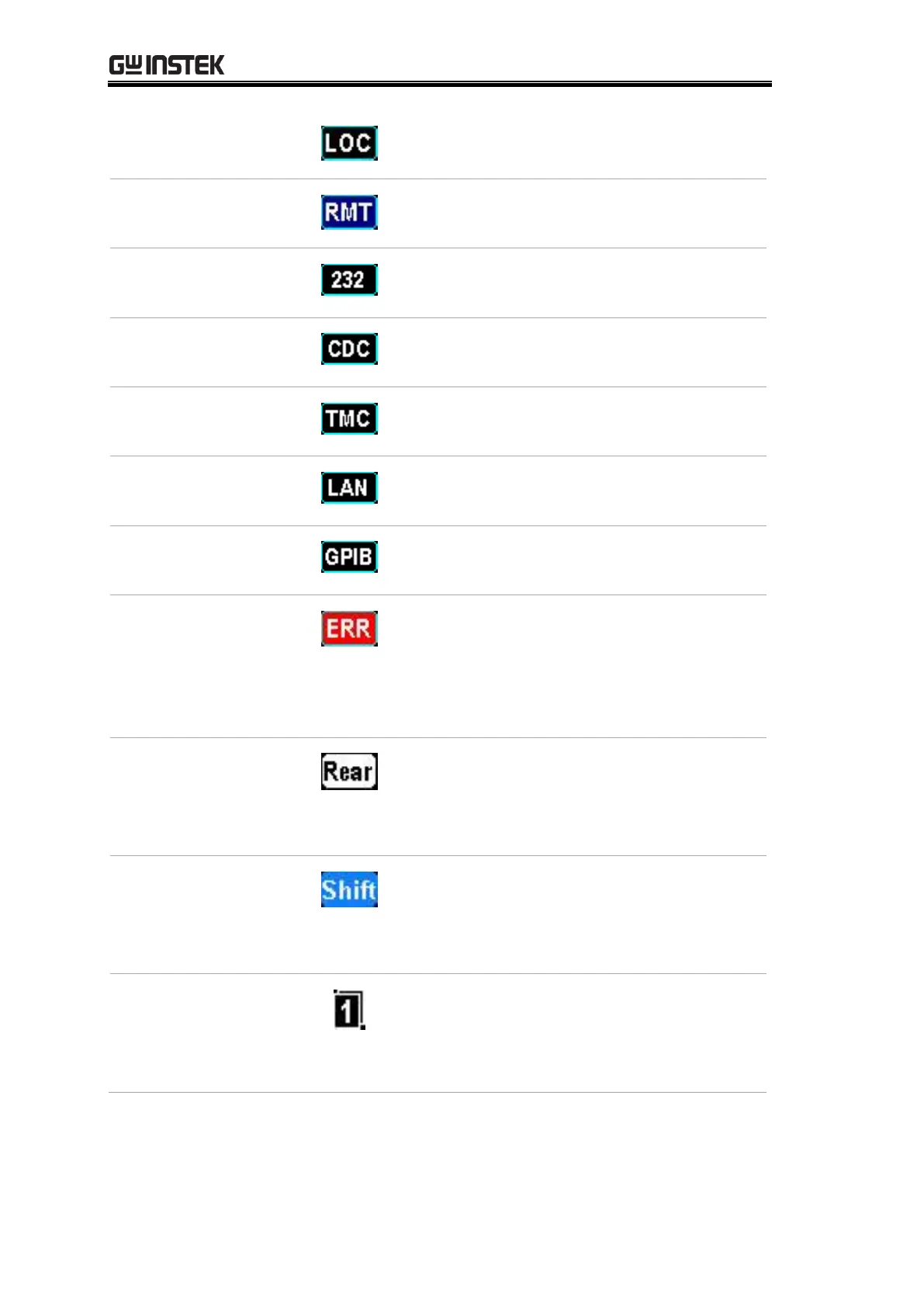

Local Control
It indicates the unit is under local
control mode.
Remote Control
It indicates the unit is under remote
control. Refer to page 200 for details.
RS-232
It indicates RS-232 interface is activated.
Refer to page 205 for details.
USB - CDC
It indicates USB - CDC interface is
activated. Refer to page 205 for details.
USB - TMC
It indicates USB - TMC interface is
activated. Refer to page 205 for details.
LAN
It indicates LAN interface is activated.
Refer to page 216 for details.
GPIB
It indicates GPIB interface is activated.
Refer to page 213 for details.
ERROR
It indicates error occurs in commands.
To erase the error icon, it is required to
read or sweep the error by remote
control commands or reboot action.
Refer to page 313 for details.
Rear Panel
It indicates rear panel control. When the
icon appears, only rear panel is available;
otherwise, use front panel for
measurement. Refer to page 18 for details.
Shift
It indicates the shift key is being pressed
ready for in conjunction with other keys
for additional functions. Refer to page
15 for details.
First function
menu
It indicates the active bottom menu
corresponding to function keys is the
first menu. Click the Knob key (Enter)
to switch to the second function menu.
