GW Instek GDM-906 Series User Manual

BASIC MEASUREMENT
61

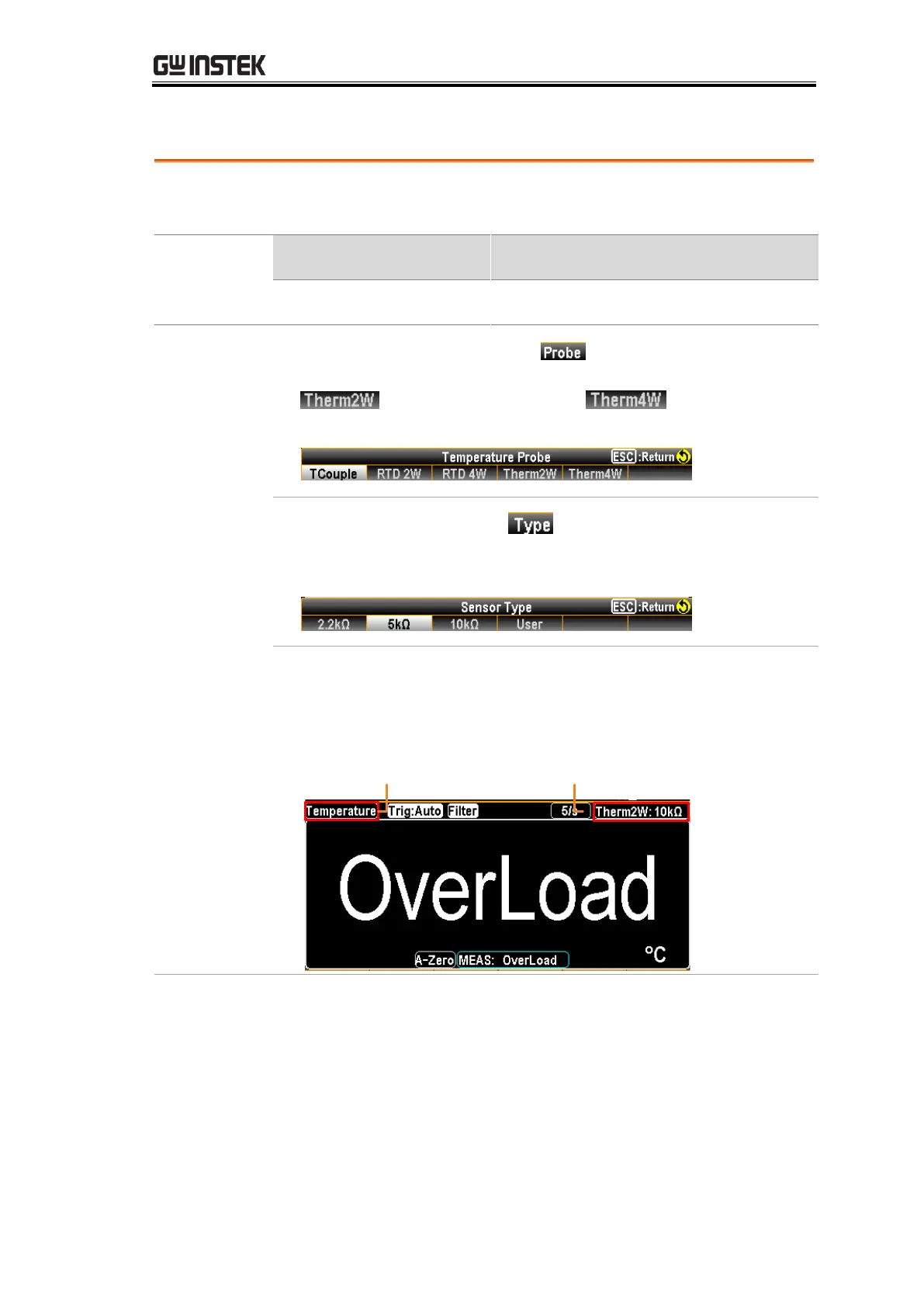

Thermistor 2W/4W Setting
Background
The GDM-9060/9061 supports 2 or 4 wire Thermistor. It is
important to specify the type of temperature sensor used.
Parameter
Type
Range
Resolution
All
-80~150°C
0.001°C
Procedure
1. Press the F1 (Probe) key to enter the Temperature
Probe menu followed by clicking either the F4 (Therm2W)
or F5 (Therm4W) key to activate
Therm 2W/4W mode. See the figure shown below.
2. Press the F5 (Type) key to enter the Sensor Type
menu as the figure shown below. Click the F1 – F3 key to
select a desired sensor type per your requirement.
3. The display shows the latest setting. See the example of the
figure below where Thermistor 2W: 10kΩ is currently
activated by user.
Probe: Therm2W
Type: 10kΩ
Temperature
Measurement
