ADVANCED MEASUREMENT
77

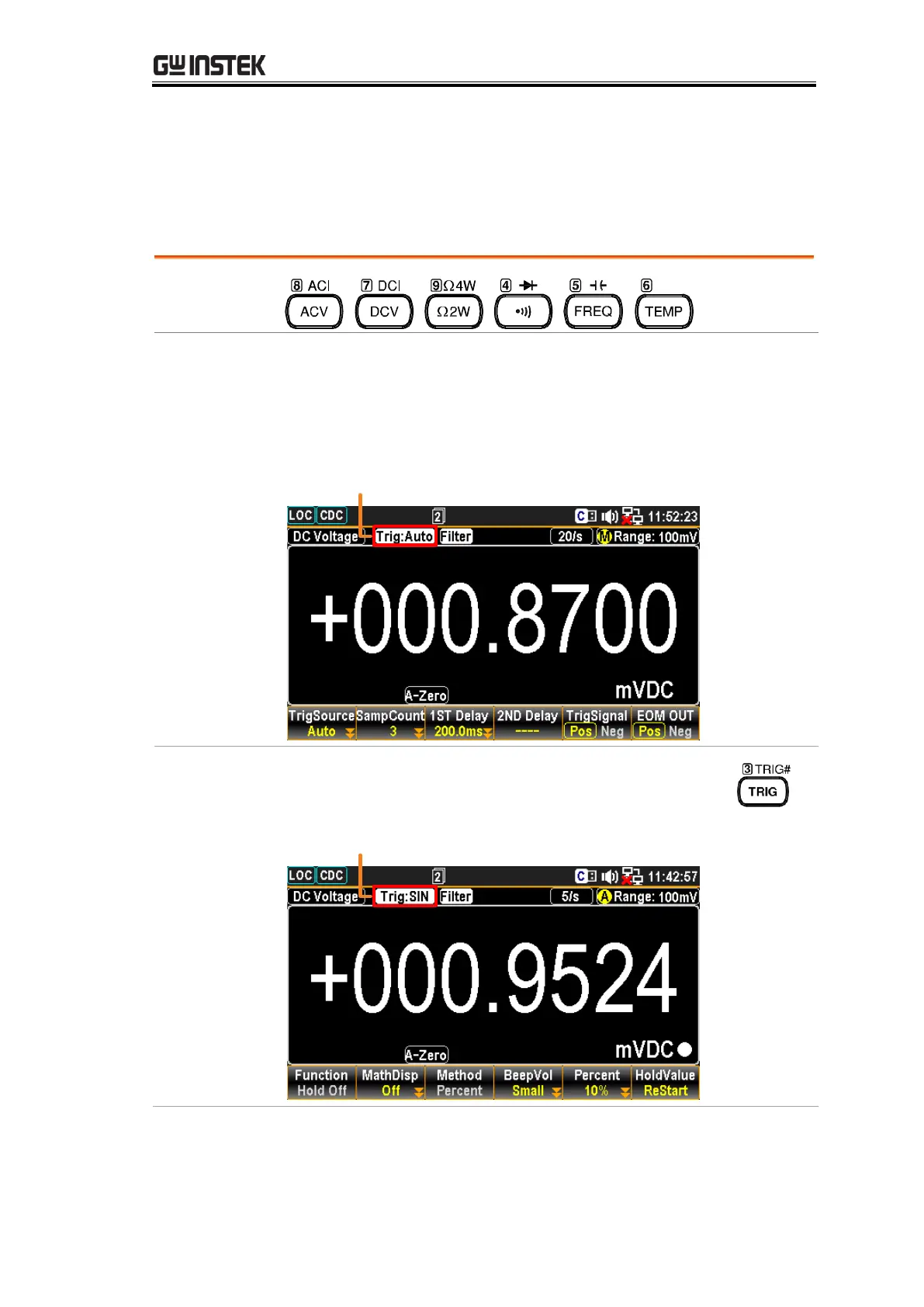

Trigger Setting
Automatic/Single Triggering
Applicable to
Automatic
triggering
(default)
By default, the GDM-9060/9061 triggers according to the
refresh rate automatically. See the previous page for refresh
rate setting details. The figure below shows the screen of
Automatic Trigger measurement.
Auto Trigger Mode
Single
triggering
Press the TRIG key to Single trigger
measurement. See below for details.
Single Trigger Mode
