GDM-906X Series User Manual
20

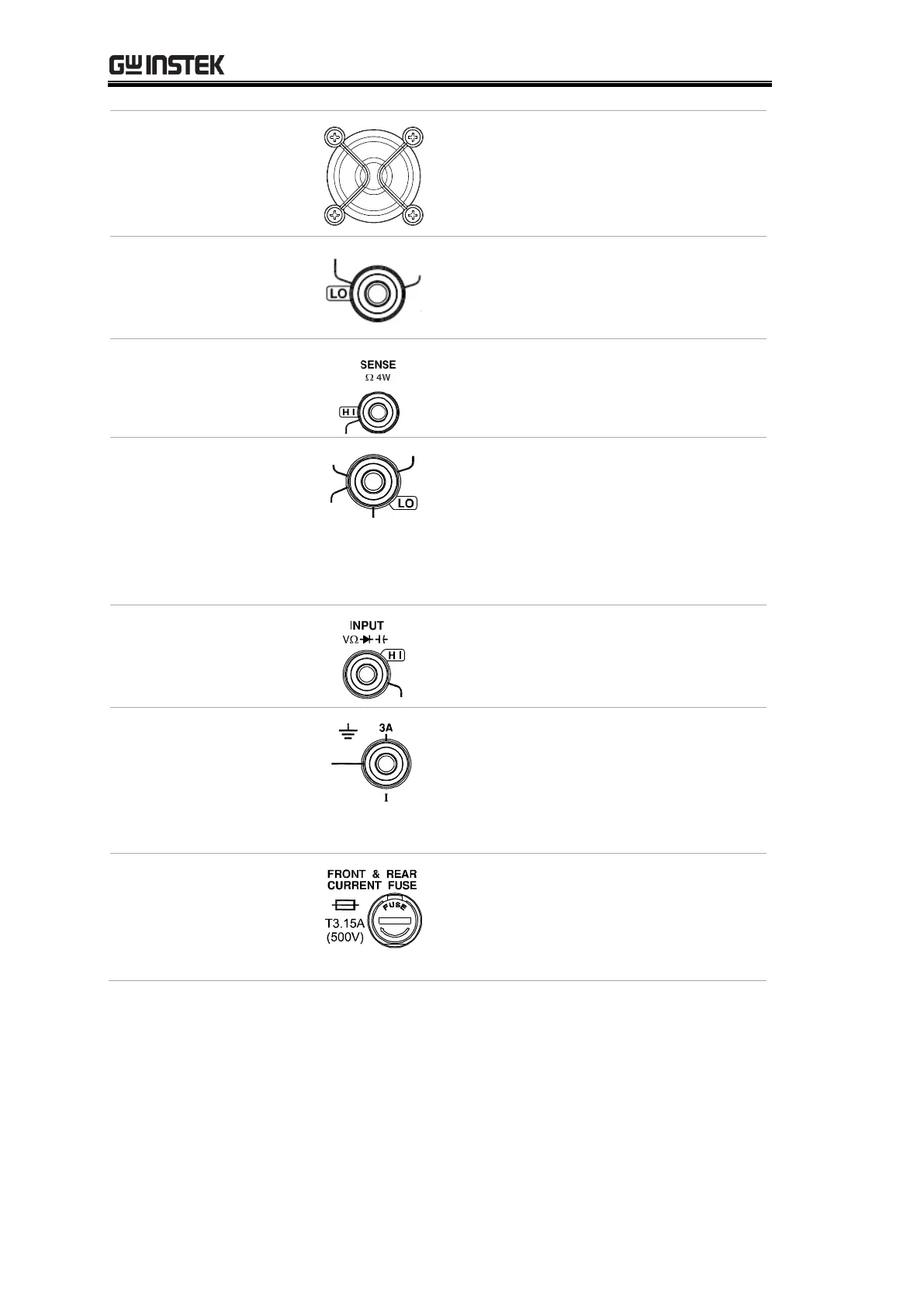

Fan Vents
For heat ventilation when machine
is under operation.
Sense LO Terminal
(GDM-9061 only)
Accepts LO sense line in 4W
resistance measurement. For
details, see page 41.
Sense HI Terminal
(GDM-9061 only)
Accepts HI sense line in 4W
resistance measurement. For
details, see page 41.
Input LO Terminal
(GDM-9061 only)
Accepts ground (COM) line in all
measurements except the sense
line in 4W Resistance (page 41).
The maximum withstand voltage
between this terminal and earth is
500Vpk.
Input HI
Terminal
(GDM-9061 only)
Used as an input port for all
measurements except for DC/AC
Current measurements.
DC/AC 3A Terminal
(GDM-9061 only)
DC/AC current input
DC: 100μA~3A
AC: 100μA~3A
For details see page 37.
DC/AC 3.15A Input
Current Fuse
Holds the current fuse: T3.15A,
500V , 5*20mm
For fuse replacement details, see
page 333.
