GDM-906X Series User Manual
14

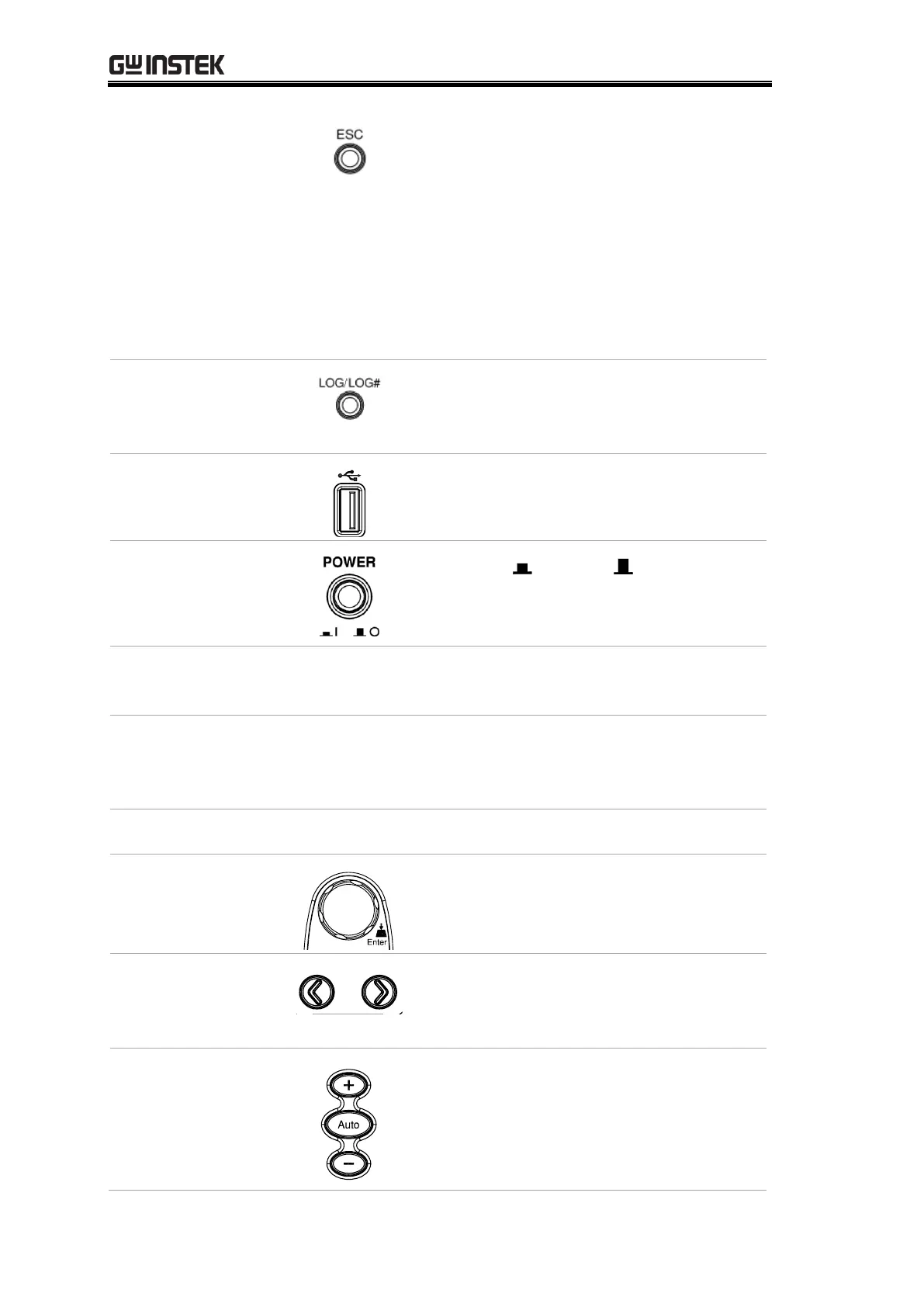

Single press to escape from current page.
Presses and holds the ESC key for 2
seconds to toggle between full display
and simple display, which conceals the
status bar, math display as well as
additional info for lightweight use.
Refer to page 21, page 160 and page 168
for more details of status bar, math
display and additional info, respectively.
Screenshot / Data
Log Saving Key
Captures the current screenshot or saves
the data log for reading. For details, refer
to page 171.
Connects with USB flash drive for data
storage.
Turns On or Off the main
power. For the power up sequence, see
page 25.
The 4.3”TFT LCD shows measurement results and
parameters. For display configurations, see page 153.
There are 4 rows in total of both basic and advanced
measurement keys deployed on the front panel. For the
details, refer to page 15 and page 17.
The 6 keys have varied functions per different settings.
Scrolls the knob to select parameters in
various setting pages. Press the key until
click to confirm setting.
Presses the left or right arrow keys to
move parameter cursor rightward or
leftward per requirement.
Presses the Auto key to activate
auto-range mode, whilst clicking “+” or
“–“ key can increase or decrease range
parameter, respectively.
