DISPLAY SETTING
183
Red Sect.
The user-specified range for
measurement.
Yellow Sect.
The endpoints of 2 sides are “0”
and “100m” respectively, which
perfectly correspond to the
specified range of measurement.
Green Sect.
The currently measured value.
Manual
Selecting “Manual” allows user to customize the
available scale for meter bar on display.
F4 (Method)
key to decide
Method mode
Backgro
und
When user selects “Manual” option under the F3
(Scale) key, the Method can be further defined
here for varied applications.
LowHigh
When LowHigh is selected, it is available to
further determine the exact scales for both the
high and low ends on the bar meter display.

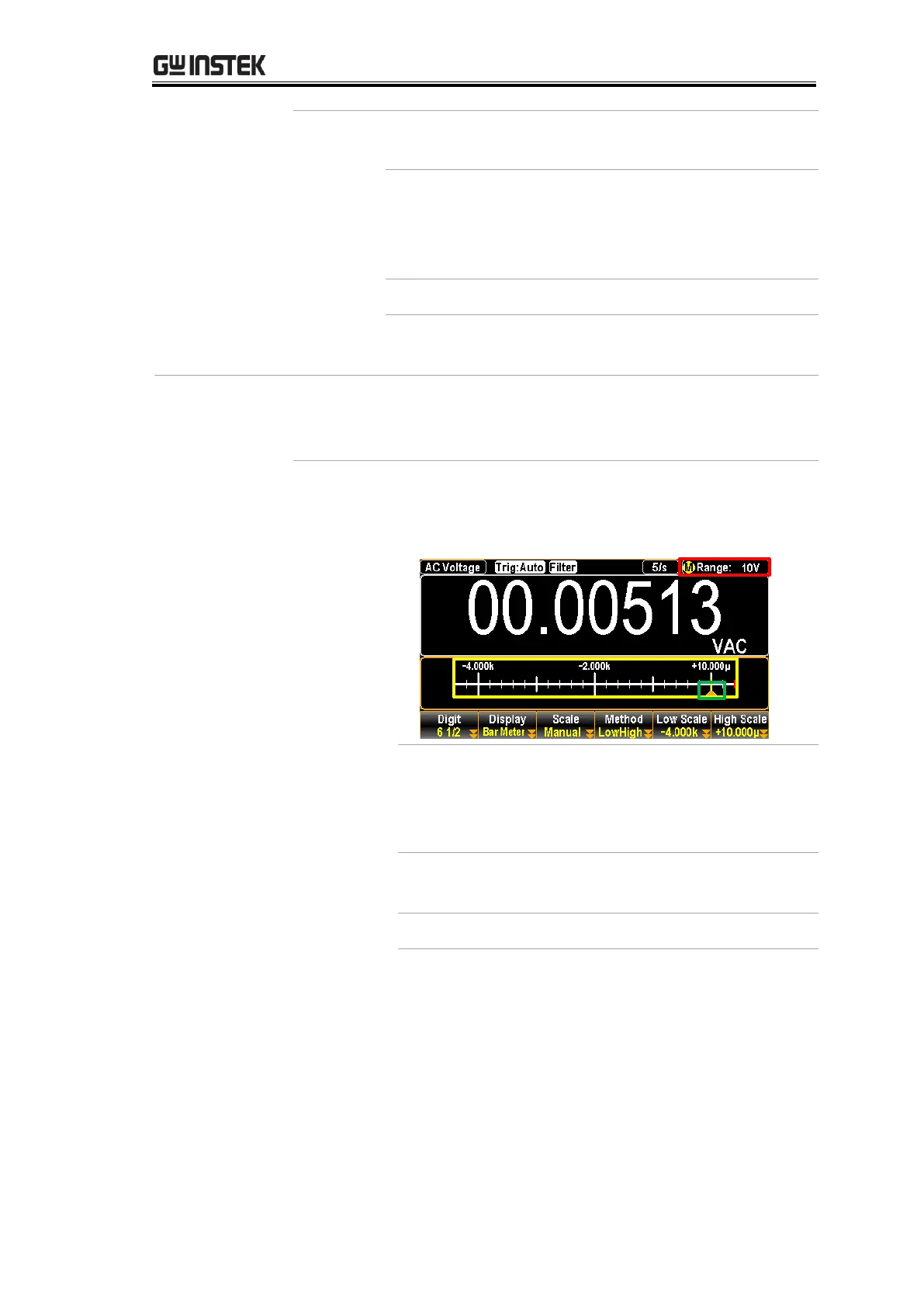

Yellow Sect.
The available scale of bar meter
starts from the lowest (-4.000k)
to the highest (+10.000u), which
are defined by user individually.
Red Sect.
The user-specified range for
measurement.
Green Sect.
The currently measured value.
Center
When Center is selected, it is available to
further determine the exact Center value and
the Span Scale for the meter bar display.
