GDM-906X Series User Manual
80

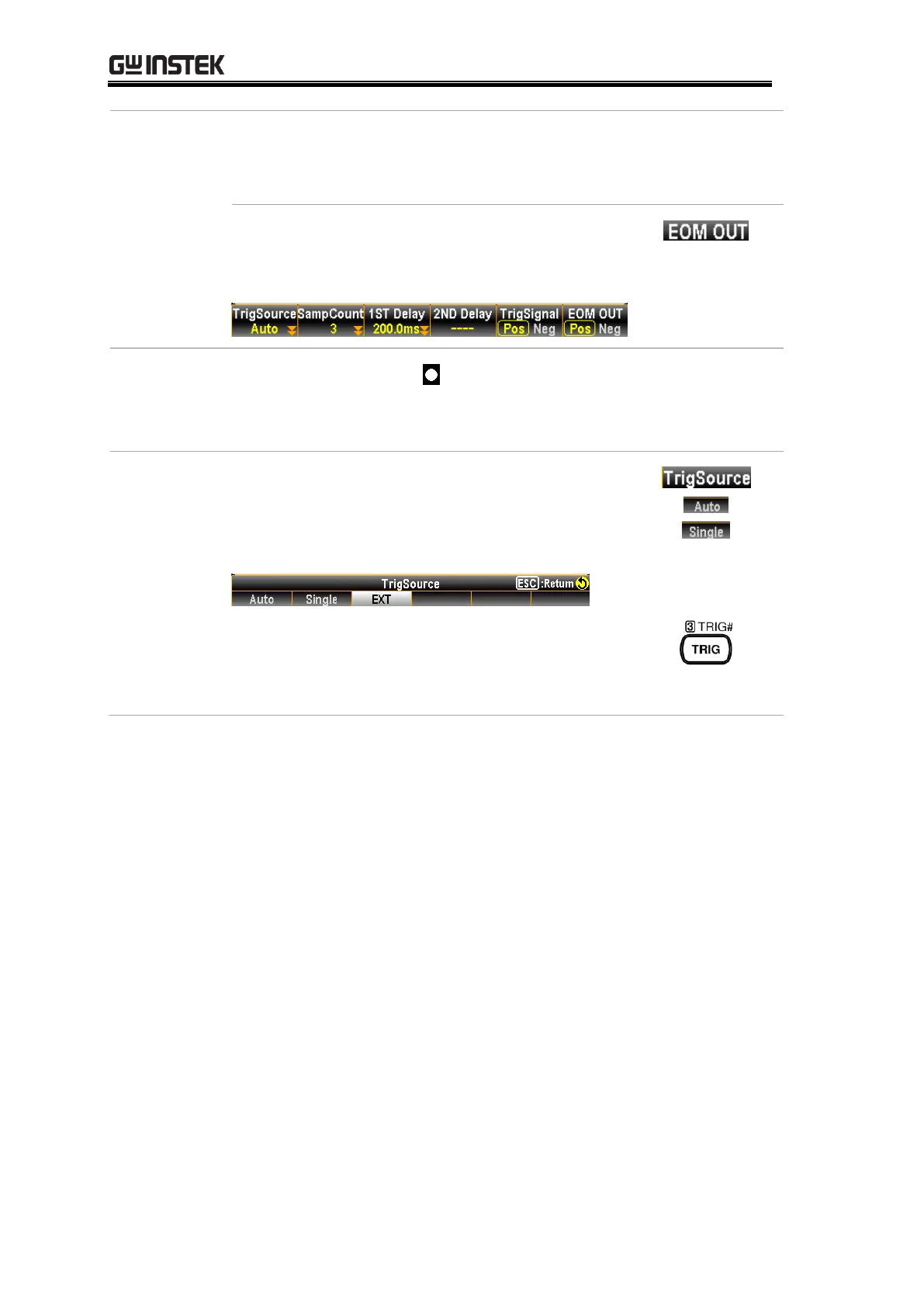

Set EOM
OUT
Background
It indicates EOM (End Of Measurement) output
signal. Select Positive or Negative as the output
signal for extension applications when necessary.
Press the F6 (EOM OUT) key to toggle
between Positive and Negative mode for EOM
OUT setting.
Reading
indicator
The reading indicator does not flash before triggering (can
be on or off). After triggering, the indicator flashes according to
the external signal trigger timing.
Exit external
trigger
Press the F1 (TrigSource) key to reenter the
TrigSource menu followed by pressing the F1
(Auto) or the F2 (Single) key to switch to other
trigger modes.
Alternatively, it is viable to simply click the
TRIG button to change to Trig:SIN mode or
click and hold the TRIG button for 2 seconds
to enter the Trig:Auto mode.
