GW Instek GPT-9500 Series User Manual

GPT-9500 Series User Manual
76
H
L
X
Hi-POT/IR output
Return terminal
Open/No Connection
Set the SCAN arrangment
8. Press the SAVE soft-key to complete.

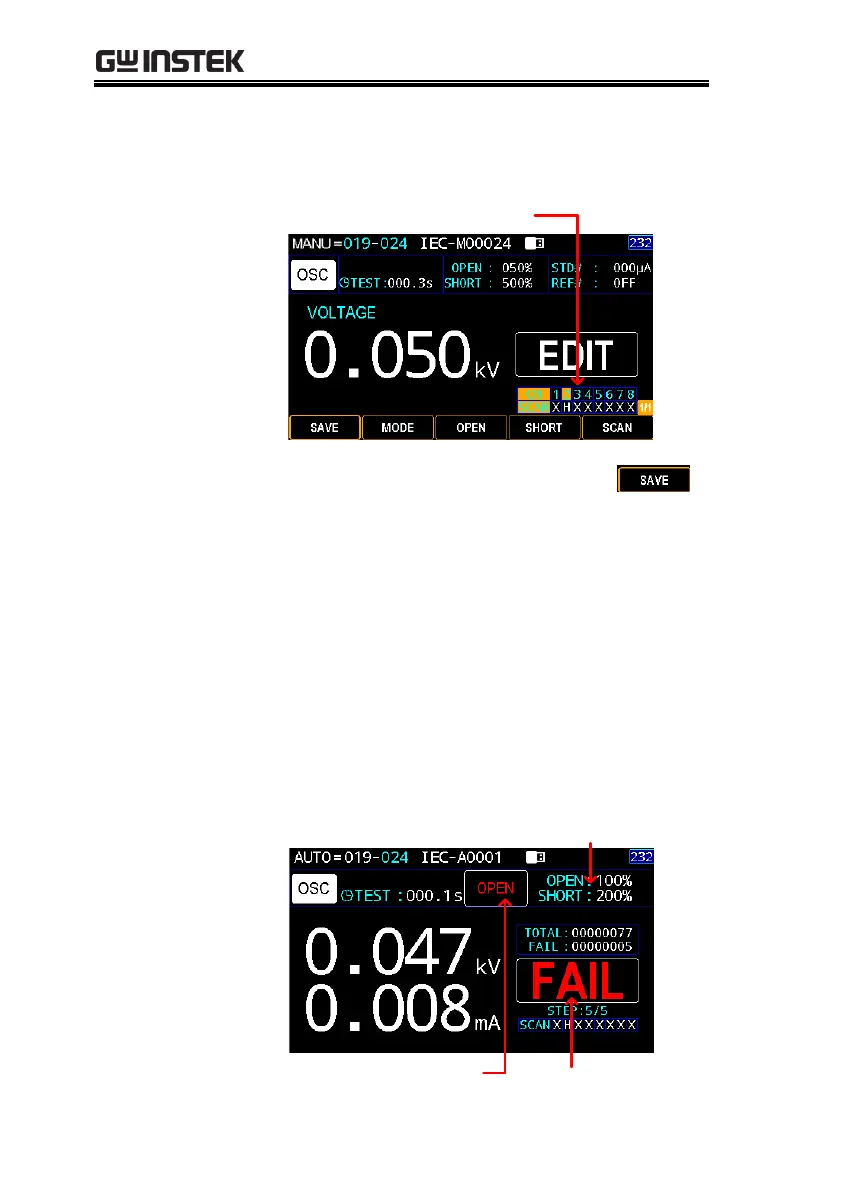

OSC Display
Prior to executing OSC action, it is required to
get a STD value, for which refer to the page 111.
While performing AUTO test where OSC step
is added, the screen will be shown as follows
for OSC step in which FAIL judgments occurs
in that either measured current value is lower
than the set OPEN ratio or is higher than the
SHORT ratio. In the case below, OPEN
judgment comes up due to the measured
current is lower than the OPEN threshold of
user-defined 100% relative to the STD value.
OPEN status judgment
FAIL judgment
The user-defined OPEN & SHORT ratios
