OPERATION
133

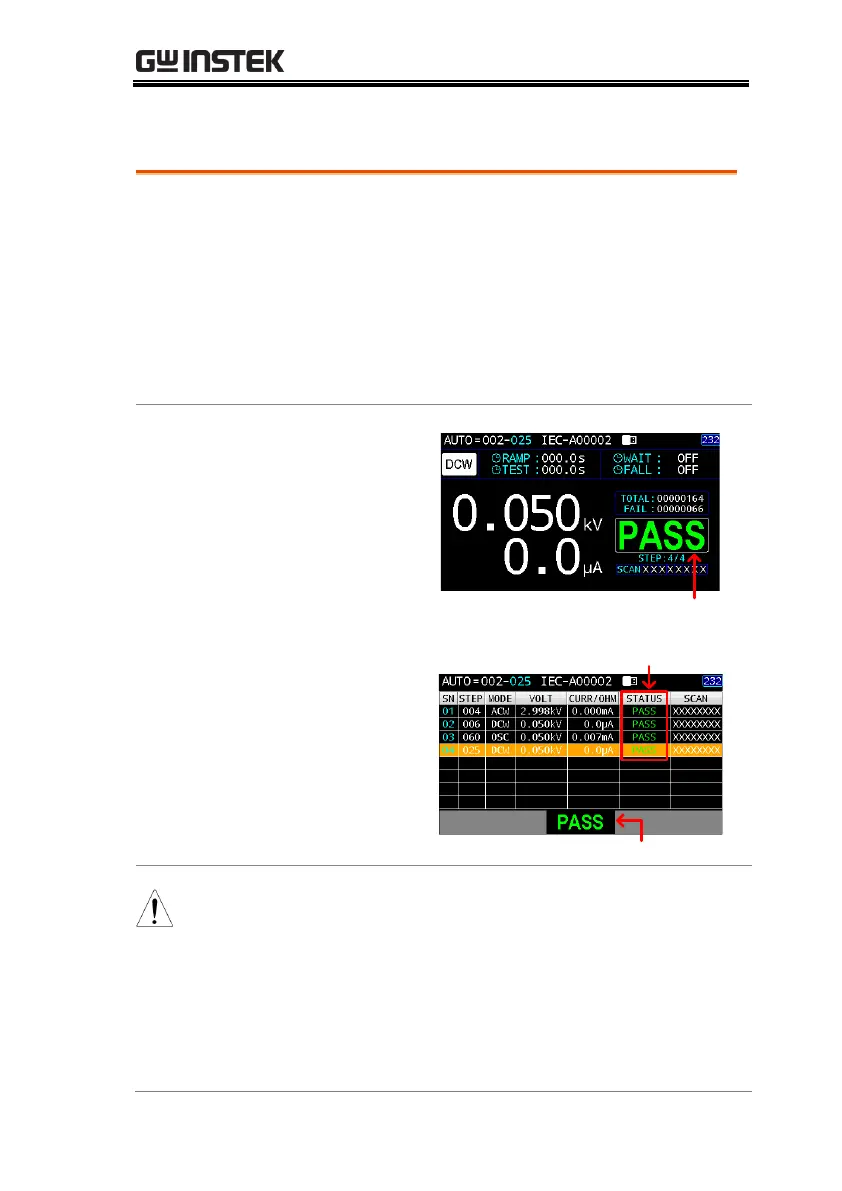

AUTO Test Results
If all the test steps are allowed to run to
completion (the AUTO test is not stopped or a
protection setting is not tripped) then the tester
will judge each step as either PASS or FAIL.
This is shown as a table after the AUTO test has
finished running. If the test has been stopped,
then any remaining tests will not be run and
thus the AUTO test will not finish running.
Test
Result of
Normal
AUTO
Display
AUTO test result indicator
Test
Result of
AUTO
Page
View
Display
Steps tests results indicators
AUTO test result indicator
The PASS/FAIL/STOP result shown for an
AUTO test as a whole depends on the results of
all the steps (MANU steps) that compose an
AUTO test. If Interlock function is enabled but
without interlock wire shorted into Interlock
terminal, the Interlock Open message will be
shown and AUTO test will be unable to start.
Refer to page 155 for details.
To Next Page
