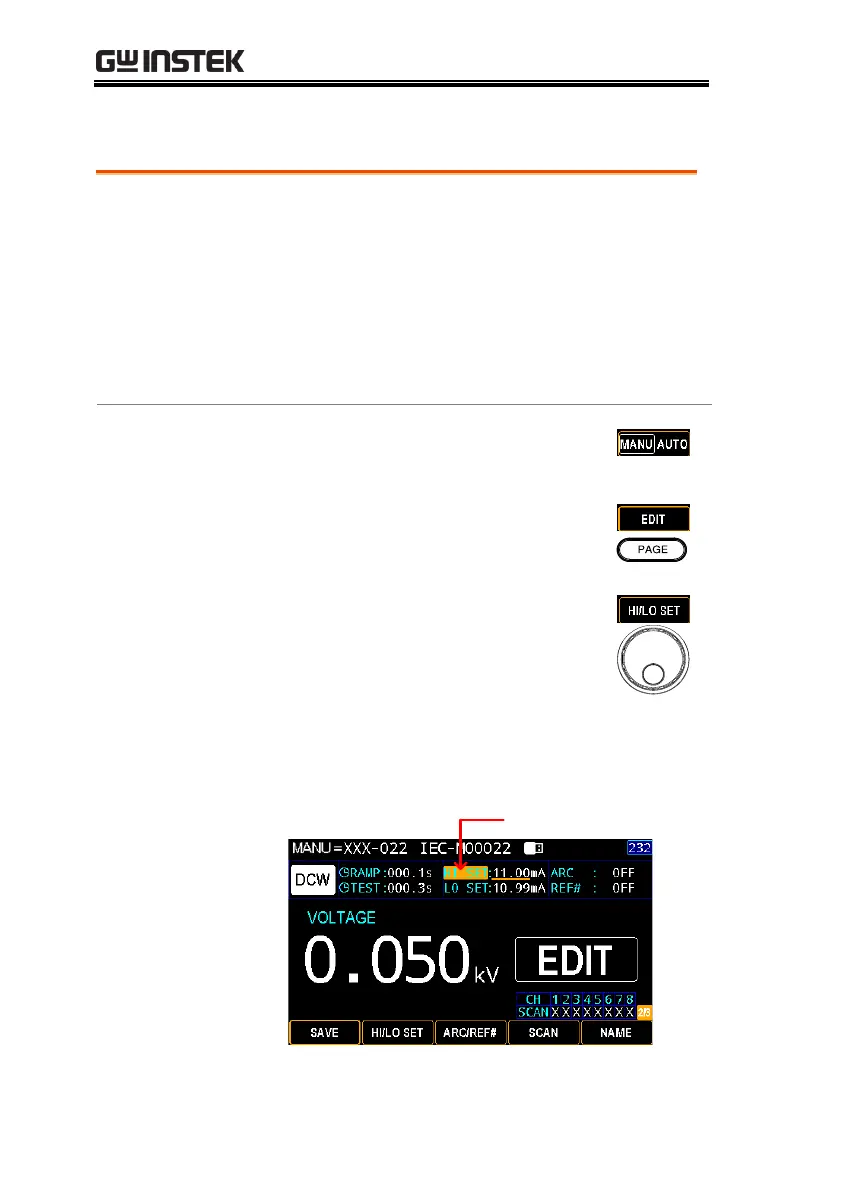

Setting the Upper and Lower Limits
Background
There is both a LOW and HI judgment setting.
When the measured value is below the LOW
SET setting, the test will be judged as FAIL.
When the value exceeds the HI SET setting the
test will be judged as FAIL. Any measurement
between the LOW SET and HI SET setting is
judged as PASS. The LOW SET limit cannot be
made greater than the HI SET limit.
Steps
1. Press the MANU/AUTO soft-key
to select MANU option.
2. Press the EDIT soft-key followed by
clicking the PAGE key.
3. Press the HI/LO SET soft-key and
then use the scroll wheel to set the
HI SET limit.
ACW (HI)
DCW (HI)
IR (HI)
001μA~033.0mA
001μA~11.00mA
000.2MΩ~50.00GΩ, OFF
Set HI SET limit
