OPERATION
55

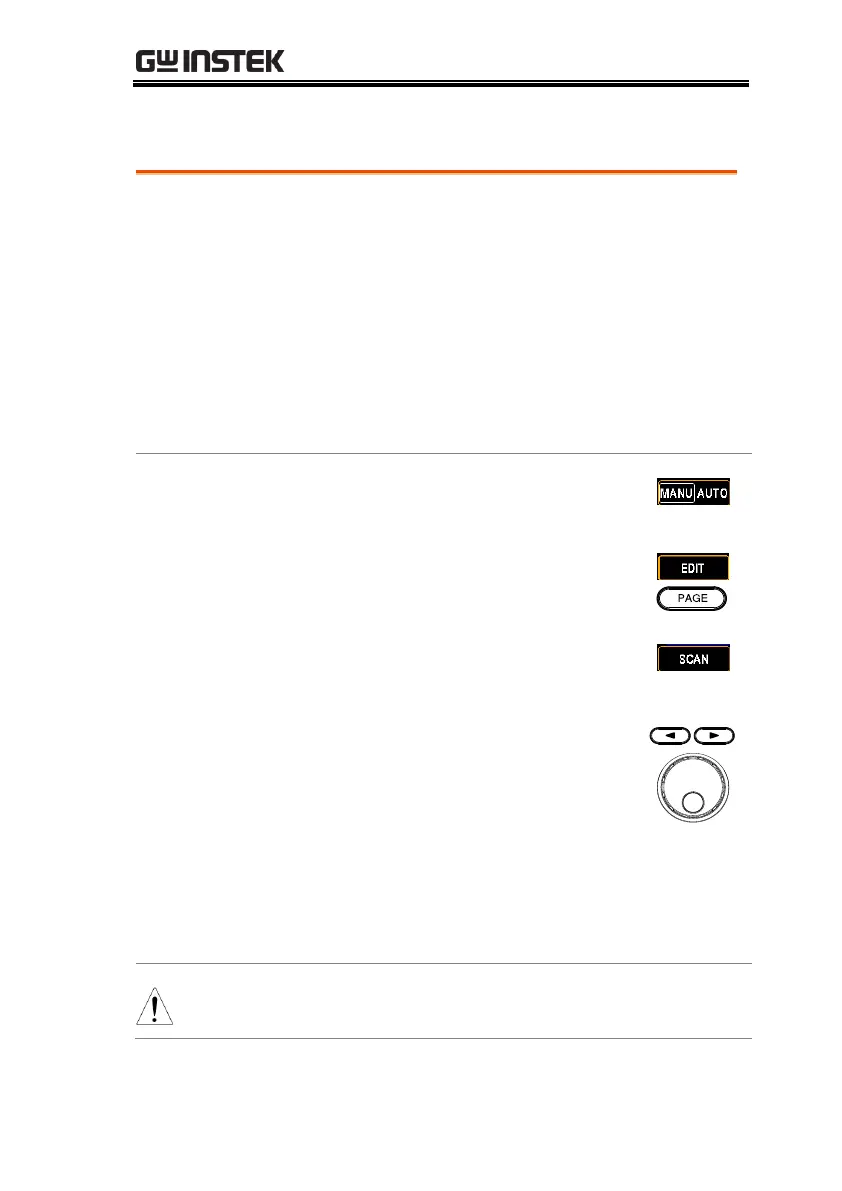

Setting the Scan Arrangement
As an 8-channel output hipot tester, up to 8
DUTs can be connected and tested with this
tester simultaneously. Consequently, user is able
to customize own deployments for each channel
per varied applications.
There are 3 statuses available for each channel,
which are “X” meaning open or no connection,
“H” standing for Hi-POT & IR output and “L”
signaling Return terminal.
1. Press the MANU/AUTO soft-key
to select MANU option.
2. Press the EDIT soft-key followed by
clicking the PAGE key.
3. Press the SCAN soft-key to enter
the SCAN setting.
4. Use the left and right arrow keys to
move among each channel, and
utilize the scroll wheel to set the
status for each channel in light of
the practical applications.
Hi-POT/IR output
Return terminal
Open/No Connection
Only GPT-9513 supports L-Return terminal setup.
The GPT-9503 is Not available for L setup.
To Next Page
