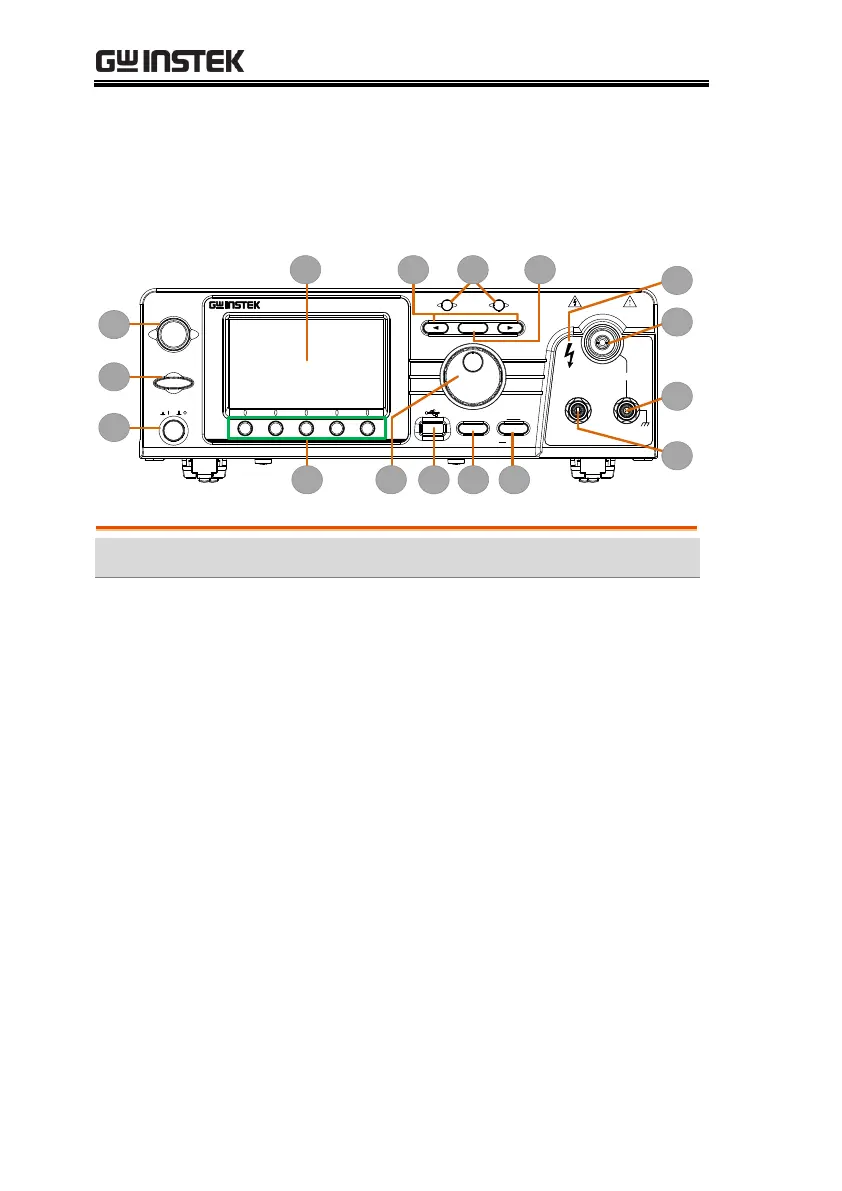

Front Panel Overview
GPT-9503/9513
STOP
START
POWER
PASS
FAIL
PAGE
ESC
UTILITY
GPT
AC / DC Withstanding Voltage /
Insulation Resistance / Scanner
Tester
HIGH VOLTAGE
CAUTION
5.0 kVAC MAX. 6.0 kVDC MAX.
RETURNCONTINUITY
HI-POT & IR
: LONG PUSH
LOCAL
HARDCOPY
-
9503
1
2
4
G E
C
B
A
9
3
F D
5 6 7 8
Item
Description
1
STOP Button
2
START Button
3
POWER Switch
4
Soft Keys (Green Zone)
5
Scroll Wheel
6
USB A-Type Host Port
7
ESC/LOCAL Key
8
UTILITY/HARDCOPY key
9
CONTINUITY Terminal
A
RETURN Terminal
B
HIGH VOLTAGE Output Terminal
C
HIGH VOLTAGE Indicator
D
PAGE Key
E
PASS/FAIL Indicators
F
Arrow Keys
G
Display
