GW Instek GPT-9500 Series User Manual

GPT-9500 Series User Manual
178

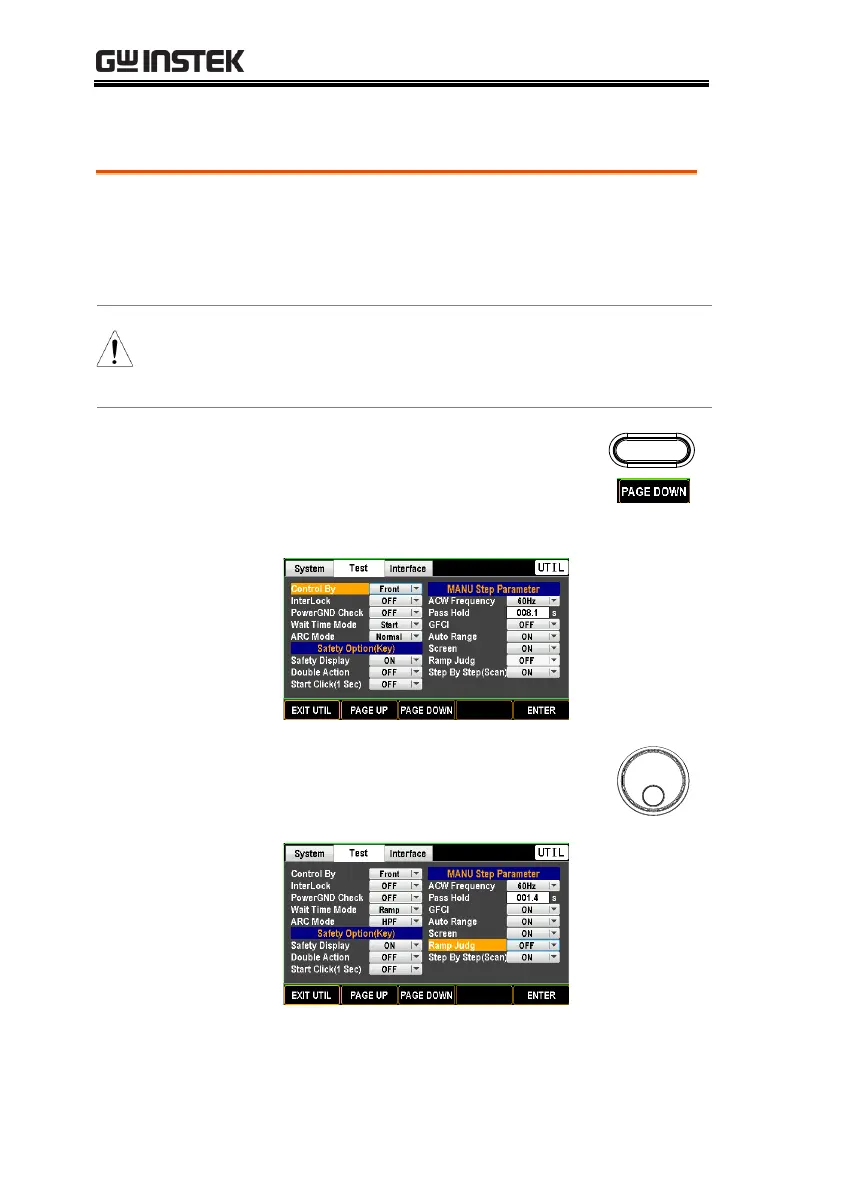

Ramp Judg Setting (for MANU)
Description
In theory, neither PASS nor FAIL status is
judged during the ramp up time. However, the
Ramp Judg function enables judgment during
the ramp duration for certain application.
Note
When the Wait Time Mode (page 159) is set
“Start”, the Ramp Judg function is
automatically deactivated.
Steps
1. Press the UTILITY key on the front
panel followed by pressing the
PAGE DOWN soft-key repeatedly
until the Test page appears.
UTILITY
2. Use the scroll wheel to move to the
Ramp Judg field.
