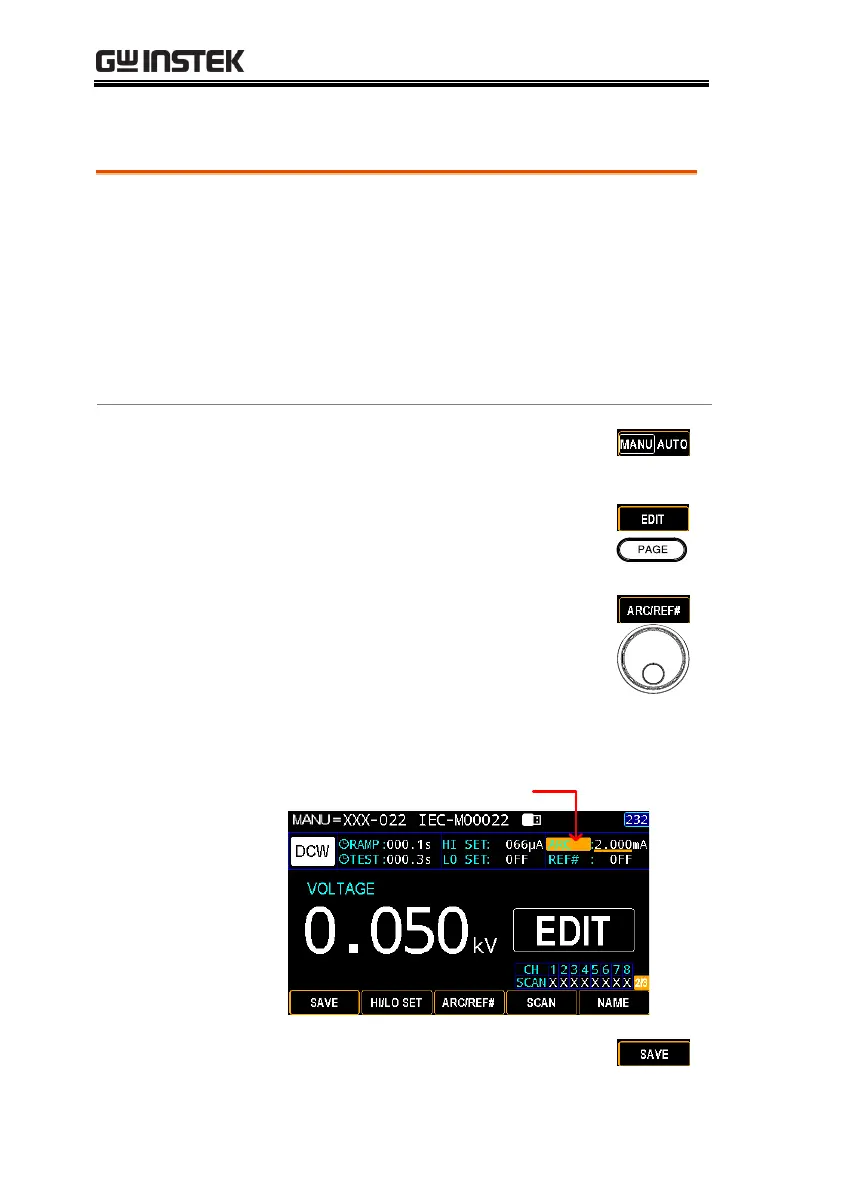

Setting the ARC Detection
Background
ARC detection, otherwise known as flashover
detection, detects fast voltage or current transients
that are not normally detected. Arcing is usually
an indicator of poor withstanding insulation,
electrode gaps or other insulating problems that
cause temporary spikes in current or voltage
during ACW and DCW testing. ARC mode setting
only applies to both ACW and DCW tests.
Steps
1. Press the MANU/AUTO soft-key
to select MANU option.
2. Press the EDIT soft-key followed by
clicking the PAGE key.
3. Press the ARC/REF# soft-key and
then use the scroll wheel to set the
threshold of ARC detection.
ACW
DCW
OFF, 1.000mA~60.00mA
OFF, 1.000mA~60.00mA
Set ARC detection threshold
4. Press the SAVE soft-key to complete.
