OPERATION
39

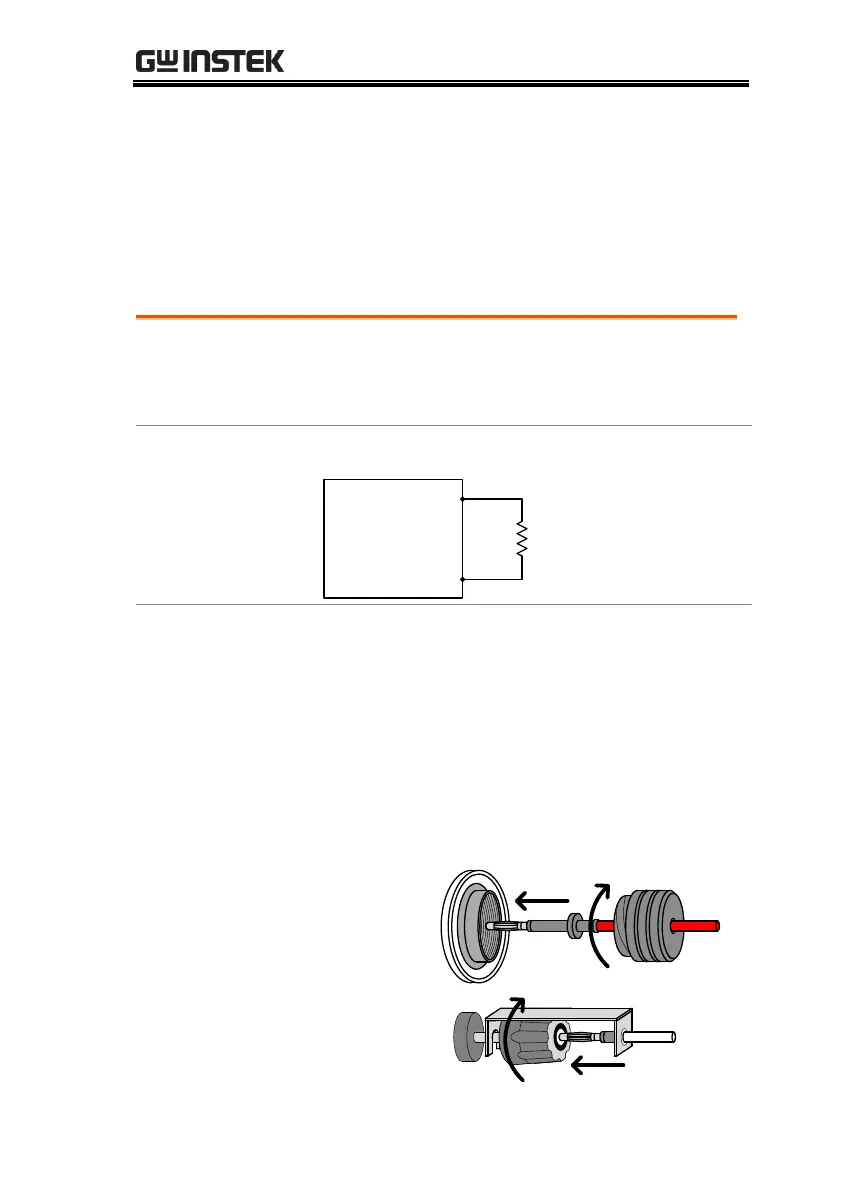

Test Lead Connection
This section describes how to connect the GPT-9500 to a DUT for
ACW withstanding, DCW withstanding as well as insulation
resistance testing.
ACW, DCW, IR Connection
ACW, DCW and IR tests use the HIGH
VOLTAGE terminal and RETURN terminal
with the GHT-115 test leads.
High Voltage terminal
DUT
GPT-9500
Return terminal
1. Turn the power off on the tester.
2. Connect the high voltage test lead (red) to the
HIGH VOLTAGE terminal and screw firmly
into place.
3. Connect the return test lead (white) into the
RETURN terminal and screw the protector bar
into place, as shown below.
HIGH
VOLTAGE
Terminal
RETURN
Terminal
To Next Page
