GW Instek GPT-9500 Series User Manual

OPERATION
45

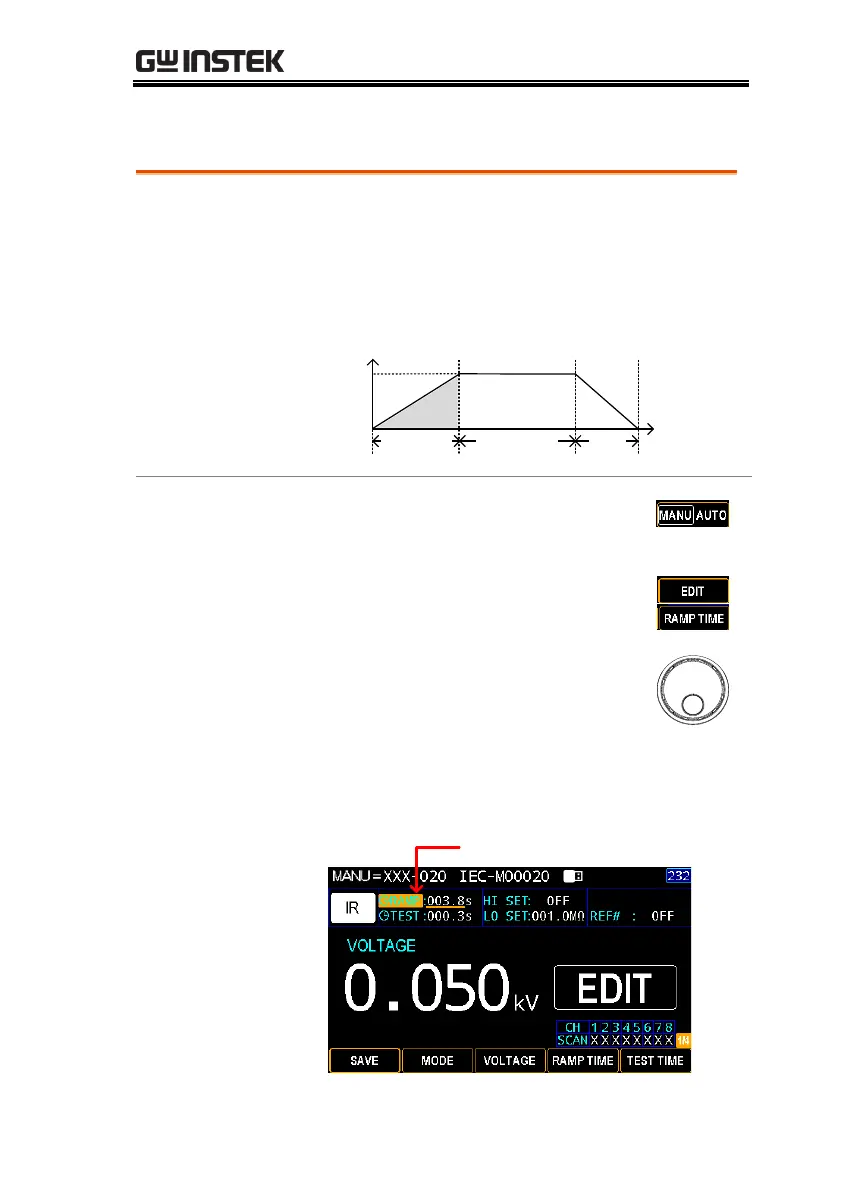

Setting the Ramp UP Time
Background
The Ramp Up time is the total time taken for
the tester to reach the test voltage level. The
Ramp Up time can be set from 000.1 to 999.9
seconds. The Ramp Up time is applicable for
ACW, DCW and IR tests.
Output Voltage
Timing Chart
(Resistive load)
Test V
time
TEST TIME
RAMP UP
FALL
Steps
1. Press the MANU/AUTO soft-key
to select MANU option.
2. Press the EDIT soft-key followed by
clicking the RAMP TIME soft-key.
3. Use the scroll wheel to set the
ramp up time.
ACW
DCW
IR
000.1s~999.9s
000.1s~999.9s
000.1s~999.9s
Set the ramp up time
