GW Instek GPT-9500 Series User Manual

OPERATION
47
Setting the Test Time
Background
This setting is used to set the test time for a test.
The test time determines how long the test
voltage is applied to DUT. This test time does
not include RAMP UP time or FALL time. The
test time can be set from 0.3 seconds to 999.9
seconds for ACW, DCW and IR tests, with a
resolution of 0.1 seconds for all modes. Also, the
test time can be set “CONT.” for all 3 modes.

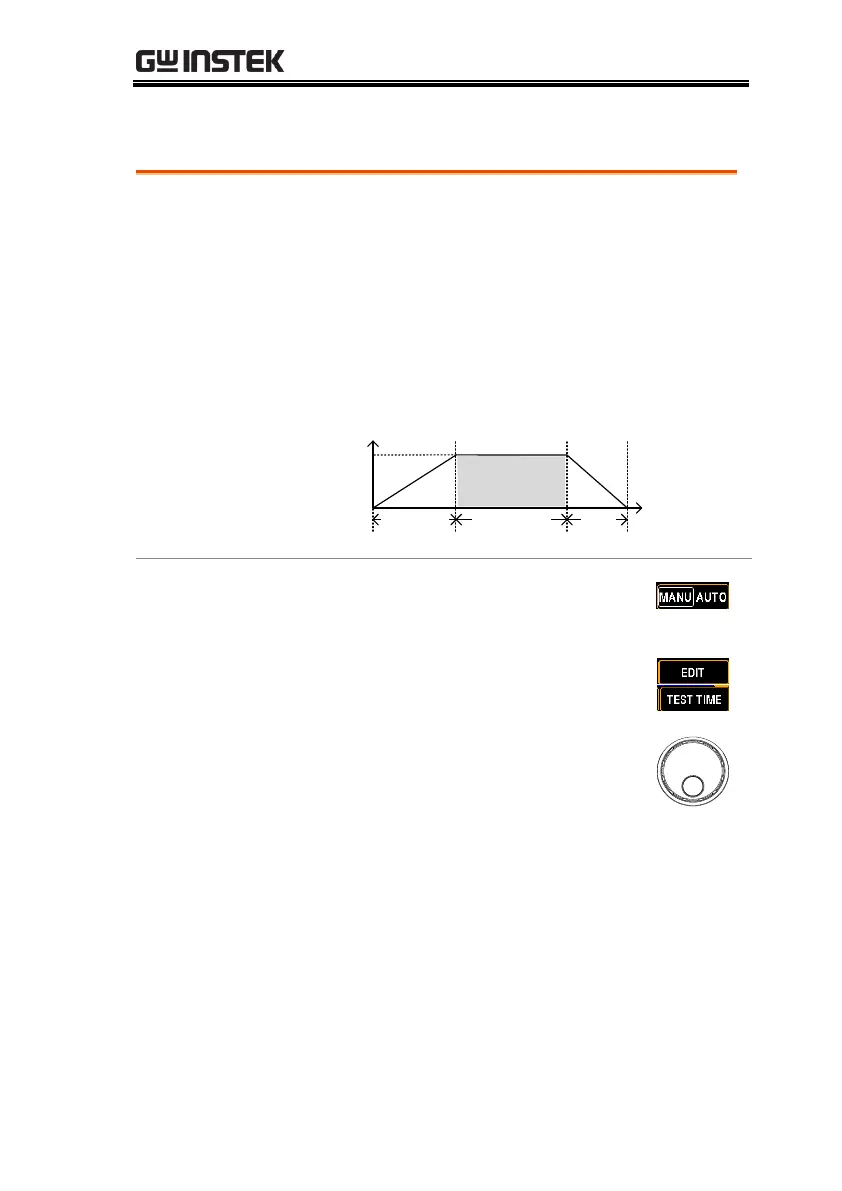

Output Voltage
Timing Chart
(Resistive load)
Test V
time
TEST TIME
RAMP UP
FALL
Steps
1. Press the MANU/AUTO soft-key
to select MANU option.
2. Press the EDIT soft-key followed by
clicking the TEST TIME soft-key.
3. Use the scroll wheel to set the
TEST TIMER value.
ACW
DCW
IR
000.3s~999.9s
000.3s~999.9s
000.3s~999.9s
