Item Description
Host Group Name / iSCSI
Target Alias
Name of the host group / alias of the iSCSI target
iSCSI Target Name Name of the iSCSI target
Host Mode Host mode of the host group
Host Mode Option Host group host mode option. When more than one host mode option is specified,
they are separated by semicolons (;)
Host Name Name of the host that can access the LU path through the port
HBA WWN / iSCSI Name Host WWN / host iSCSI name. The name is in 16-digit hex format.
Logical Devices report

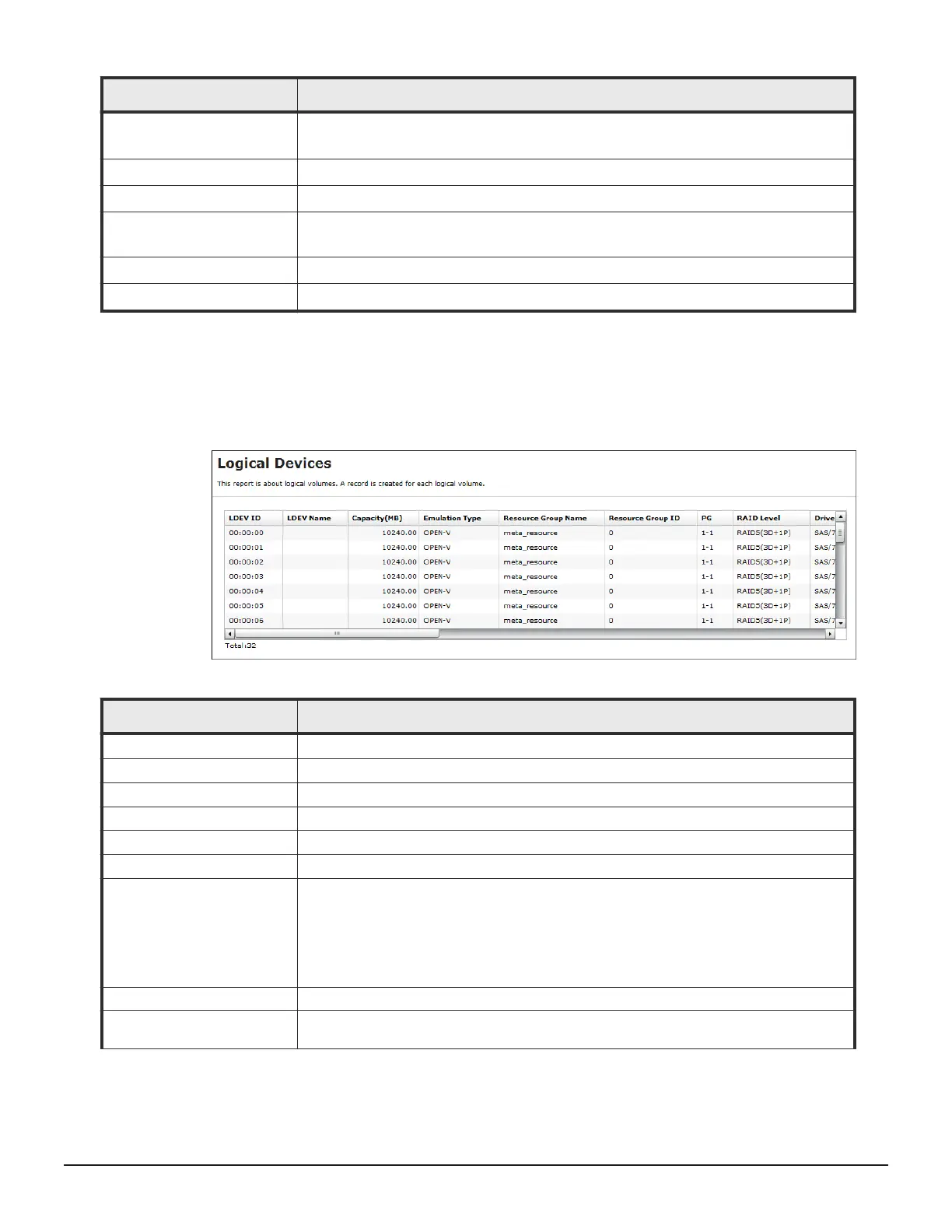

The following figure shows an example of a logical volumes report. The table
following the figure describes the items in the report.
Item
Description
LDEV ID The logical volume number
LDEV Name The logical volume name
Capacity (MB) Capacity of the logical volume
Emulation Type Emulation type of the logical volume
Resource Group Name Resource group name where LDEV belongs
Resource Group ID Resource group ID where LDEV belongs
PG The parity group number.
• If the number starts with "E" (for example, E1-1), the parity group contains
external volumes.
• If the number starts with "M" (for example, M1-1), the parity group contains
FICON DM volumes.
A hyphen displays for Dynamic Provisioning or Thin Image V-VOLs.
RAID Level RAID level of the parity group where the logical volume belongs
1
Drive Type/RPM Drive type and round-per-minute (RPM) of the drive of the parity group where the
logical volume belongs.
286 Examples of storage configuration reports
System Administrator Guide for VSP Gx00 models and VSP Fx00 models
