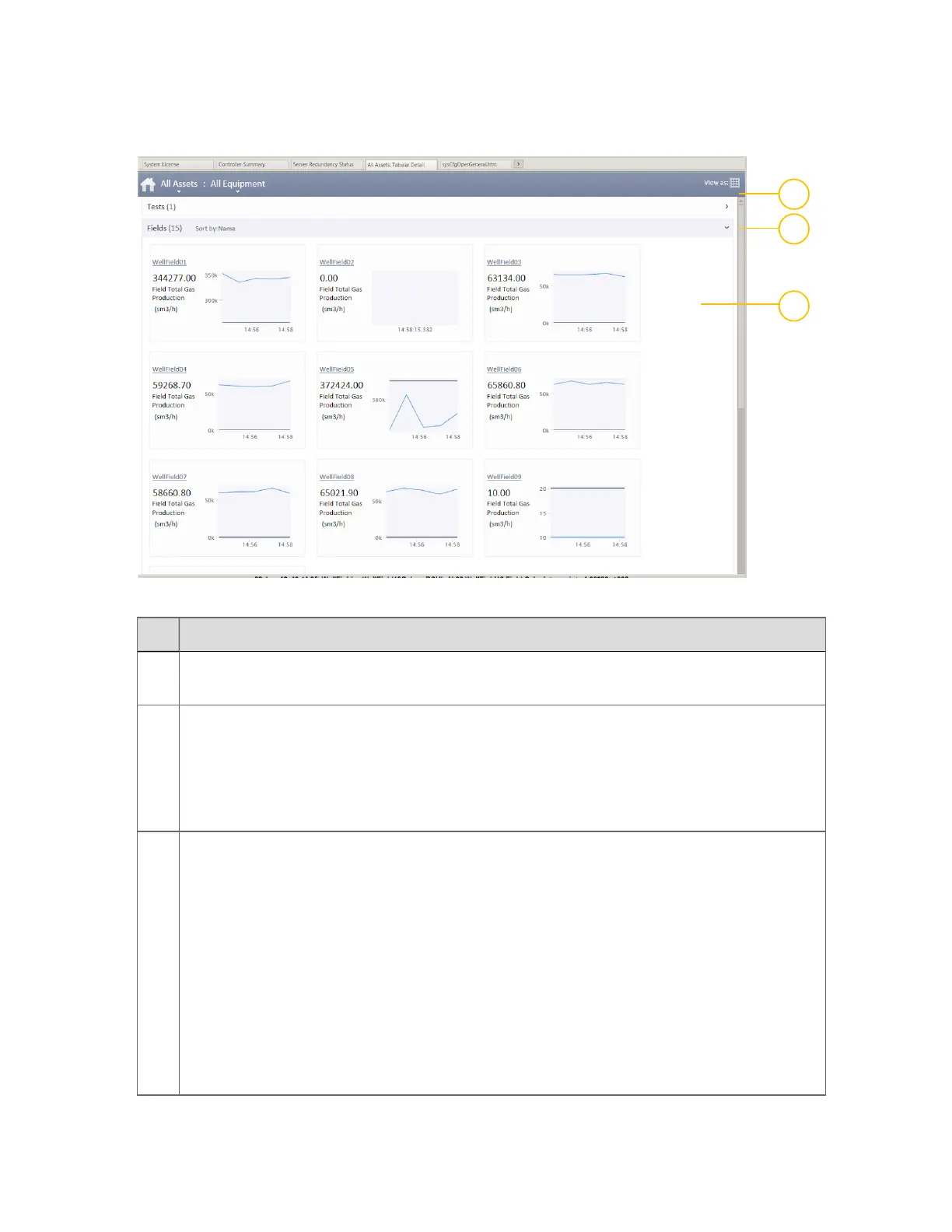

Equipment summary layout – Card view
Item Description
1
Equipment Summary header provides filtering options, enabling equipment to be filtered by
Assets and/or Equipment type, or group.
2
Equipment type header
The header for each group contains the name of the group and the number of equipment
items within the group. When clicked, the header expands or collapses the section within.
The numbers after Equipment type headings (Tests, Fields) indicate the number of
equipment listed in that section.
3
Equipment data
For the card view, as shown, each card contains:
n
Alarm indication (if required)
n
Name of equipment
n
Description
n
Units of measurement (optional)
n
Up to three key parameters, which can be presented numerically and/or graphically
in a mini trend, as shown
Summary display elements – Card view
Viewing equipment
Honeywell 2017 82
