Here is the second example of a possible layout for the Equipment Summary – the table view

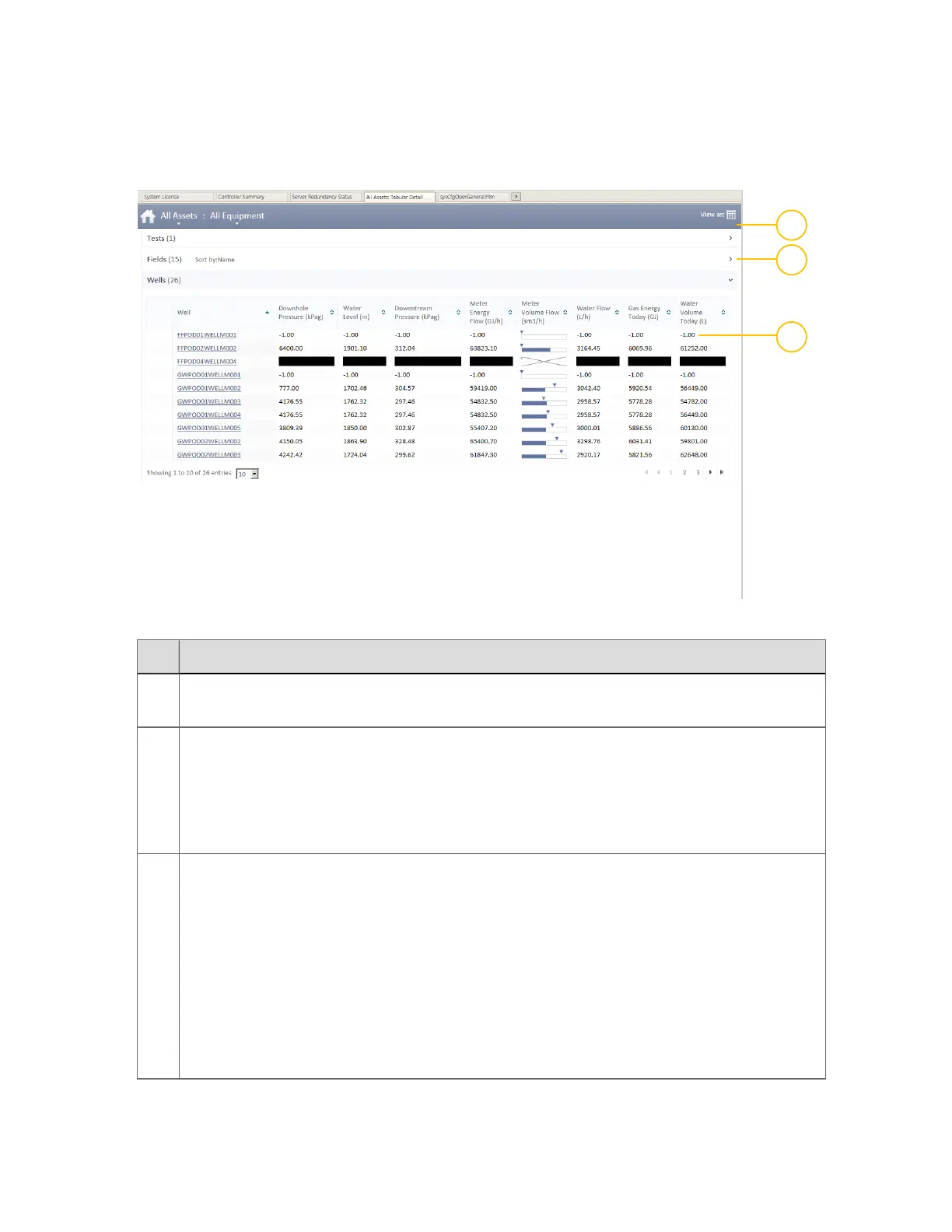

Equipment summary layout – Table view
Item Description
1
Equipment Summary header provides filtering options, enabling equipment to be filtered by
Assets and/or Equipment type, or group.
2
Equipment type header
The header for each group contains the name of the group and the number of equipment
items within the group. When clicked, the header expands or collapses the section within.
The numbers after Equipment type headings (Tests, Fields, Wells) indicate the number of
equipment listed in that section.
3
Equipment data
For the table view, each table contains:
n
Alarm indication (if required)
n
Name of equipment (click on the name to go to the detail display for that equipment)
n
Columns containing values for each of the configured key parameters, which can be
presented numerically and/or graphically using indicators, as shown
n
Display and navigation options enabling you to change the number of rows displayed
Summary display elements – Table view
