COMMISSIONING
62 Service Manual Part No.: 4417340 Revision 1
954 SmartServo FlexLine

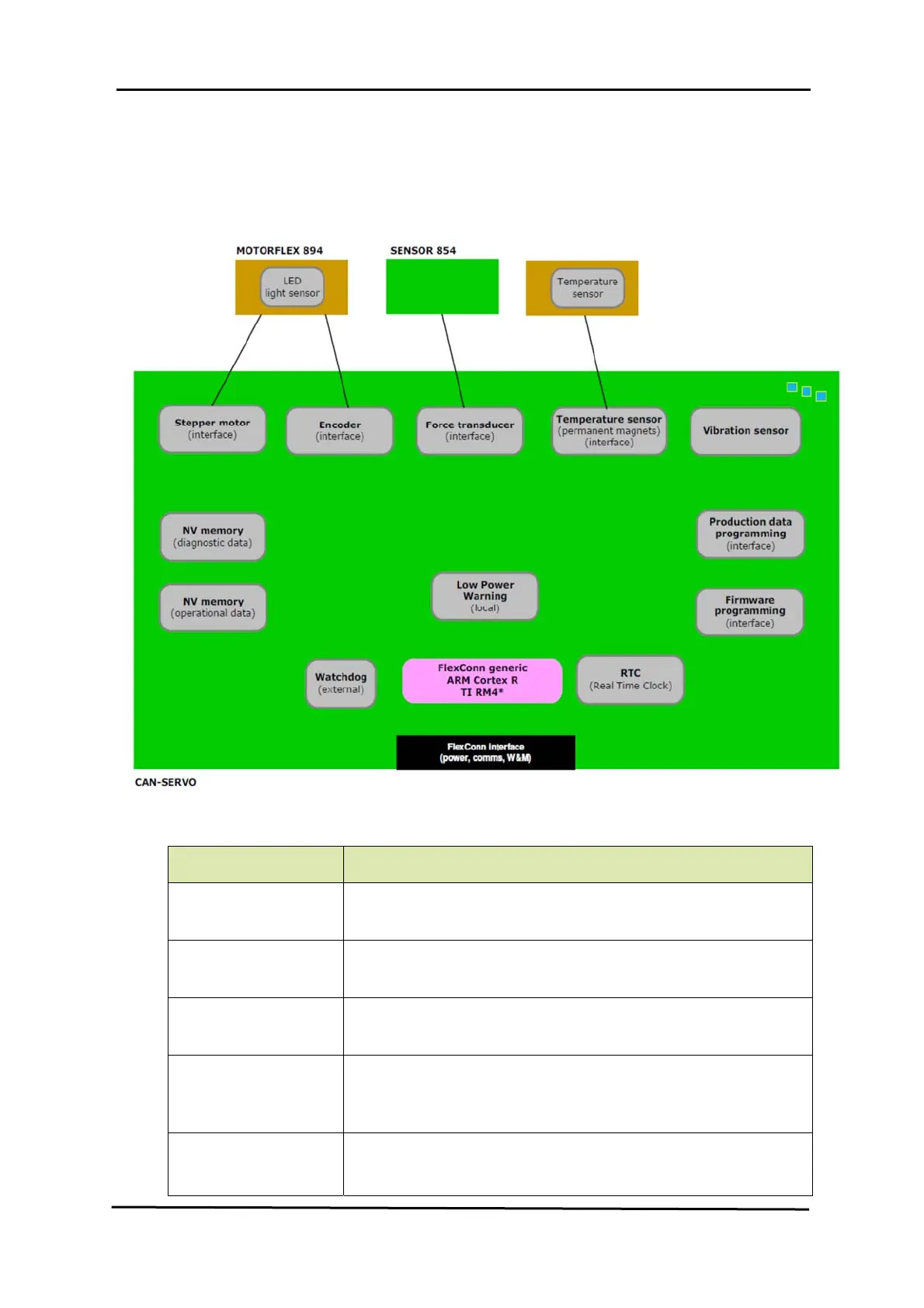

The CAN-SERVO board contains the following high level functions:
Element Description
Vibration sensor Sensor on the CAN-SERVO board measuring vibrations
(acceleration).
Stepper motor Motor to control the drum position in order to be able to raise or
lower the displacer position in the storage tank.
Encoder Transmits unique patterns in order to read out the motor position
by the firmware.
Force transducer Measuring the force the displacer is
applying to the servo system represented
as a frequency.
Magnet temperature
sensor
An interface on the CAN-SERVO board to a temperature sensor
positioned inside the gauge in such a way that it represents the
temperature of the magnet in order to be able to compensate for
