Honeywell touchpoint Pro User Manual

MAN0923_Issue 3_04/15 Touchpoint Pro
Operating Instructions
19
2.1 Touchpoint Pro
Touchpoint Pro is a control system for Honeywell Analytics’ (and third party) range of sensors, which
provides alarm evaluation and logically connectable relay outputs for alarm annunciation or control
equipment operation.
Any system can be built from just four main building blocks:
1. A control module with colour LCD touch screen User Interface
2. Plug-in Input / Output (I/O) modules
3. A backplane power and communications highway
4. Power Supplies
These basic components can be mounted in cabinets or racks (or a combination) and the I/O modules
freelymixedandmatchedinanycombination.Fromsmall-scalesystemstolargefullyintegratedgas,re
andshutdownsystems,TouchpointProhastheexibilitytomeetallyourgasandresafetysystemcontrol
requirements.
The heart of Touchpoint Pro is the Controller, which includes the User Interface. The User Interface features
a full colour liquid crystal display (LCD) with touch screen, and provides engineers with an intuitive solution
to system set-up and deployment.
Touchpoint Pro System Key Components
2. Overview / Introduction
Remote Unit
120W 24 Vdc
PSU
Redundancy
Module
UPS
Module
240W 24 Vdc
PSU
480W 24 Vdc
PSU
mV and mA
Analogue
Input Modules
Relay Output
Module
Digital Input
Module
Input and Output Modules
Controller with User Interface
Communication / Power Rail Power Supply Units
Remote Unit
1
2 3 4

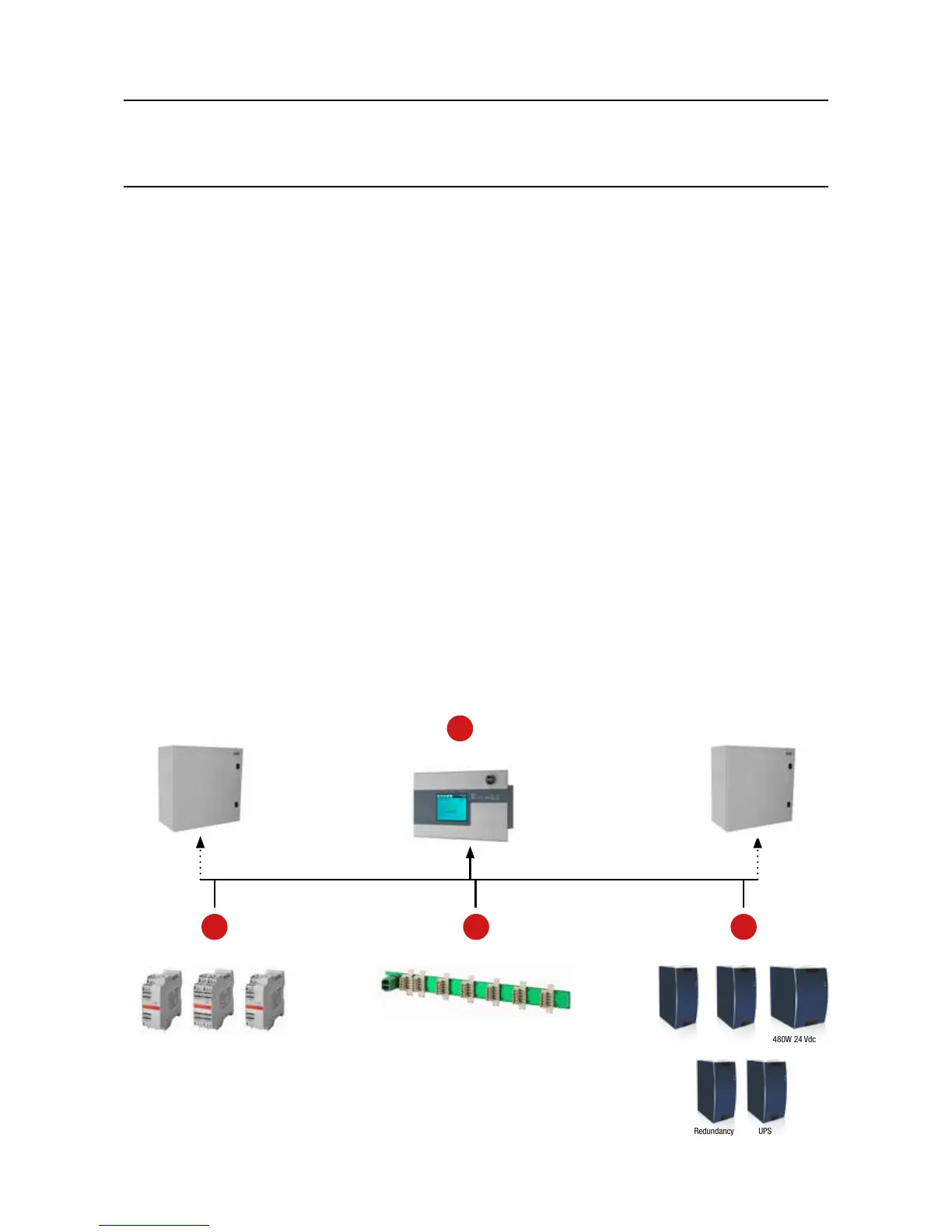

Figure 2.1 Touchpoint Pro system overview
