Honeywell touchpoint Pro User Manual

MAN0923_Issue 3_04/15 Touchpoint Pro
Operating Instructions
37

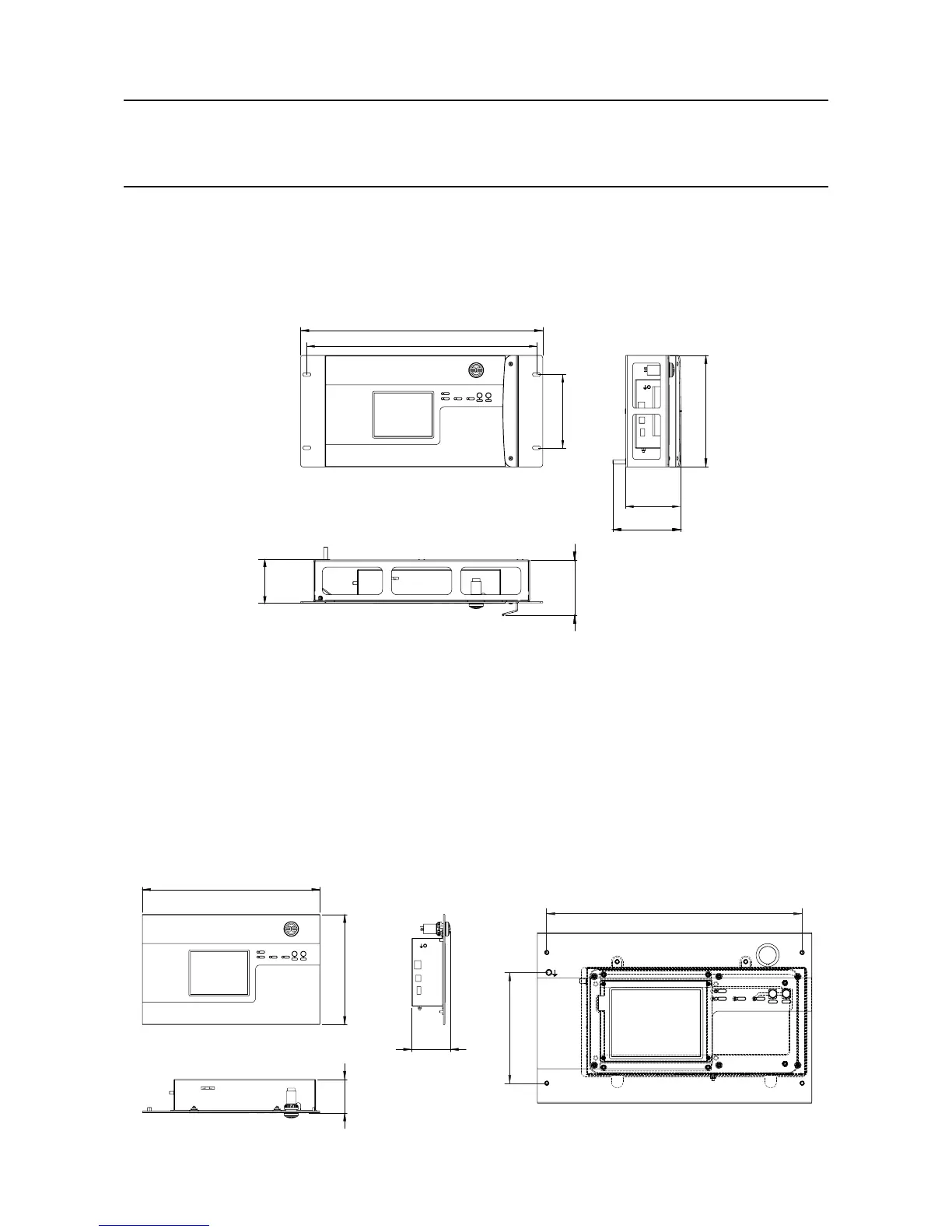

3. Mechanical Installation
3.5 19” Rack mounted unit
Thismoduleisdesignedtotintoanindustrystandard19”rack,withaheightof5U.Thedimensionsofthe
19” rack mounted unit (Controller or Remote version) are shown below (all dimensions in mm):
110
110
135
483
222
85,5
mm
462.1
mm
145
mm
mm
mm
mm
mm
mm
Figure 3.12 19” Rack dimensions
The weight of the unit is 10 kg.
3.6 Panel Mount Controller
Thismoduleisdesignedtobettedintoacustompanel.Ithasaheightof5U.Thedimensionsoftheunit
are given below (all dimensions in mm):
332.7 mm
144.3 mm
78 mm
67 mm
222 mm
358 mm
Figure 3.13 Panel mount controller dimensions
