4. Electrical Installation
Label Purpose
Input 1 + DC Supply 1 +V
Input 1 - DC Supply 1 -V
Input 2 + DC Supply 2 +V
Input 2 - DC Supply 2 -V
Output + DC Output +V
Output - DC Output -V

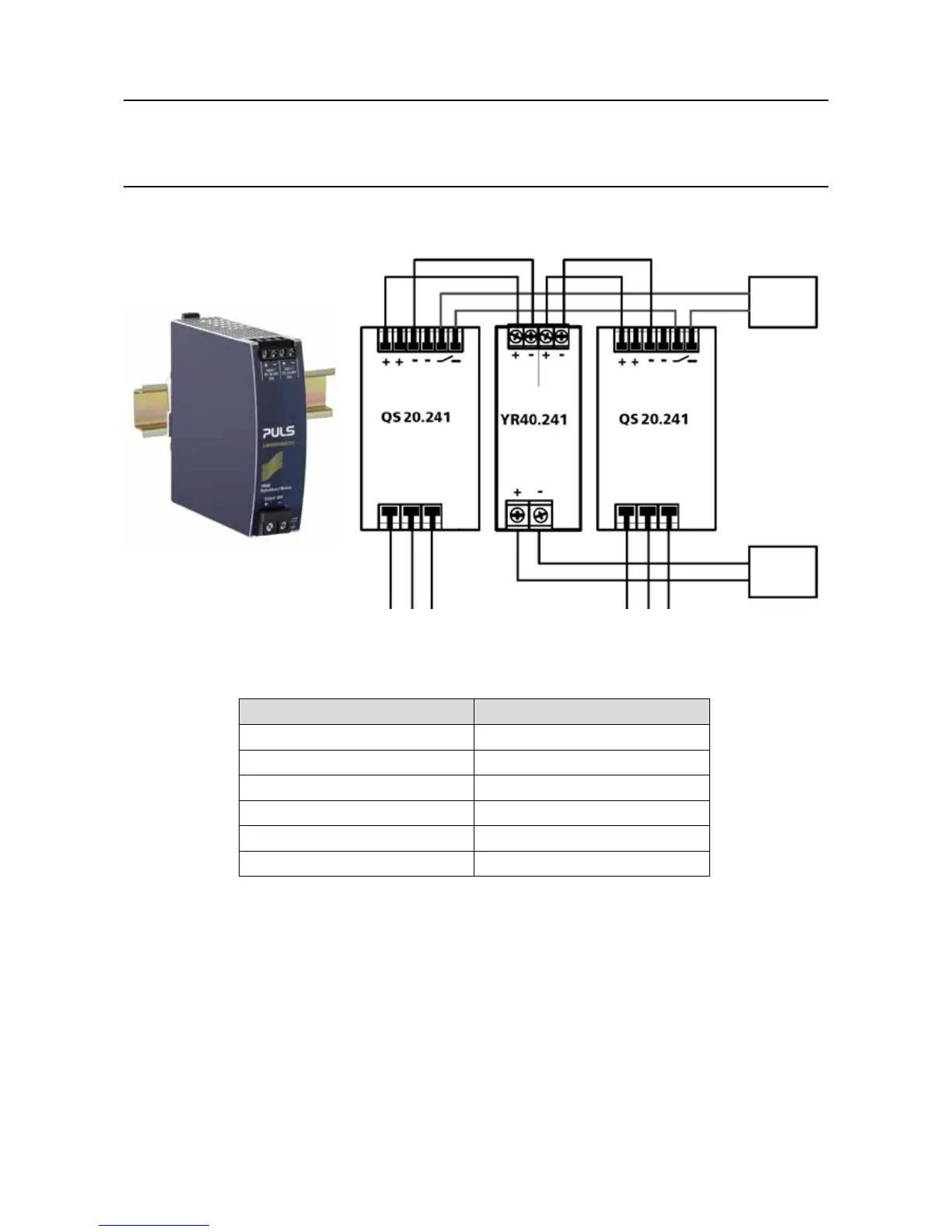

Figure 4.9 Power Redundancy Module
4.8.2 Power Redundancy Module
Redundancy
Module
Output
Power
Supply
AC
L N PE
Power
Supply
AC
L N PE
24V, 20A24V, 20A
Input
1
Input
2
DC-
OK
Failure
Monitor
DC-
OK
20A
Load
