Honeywell touchpoint Pro - Large Wall Mounted Enclosure

MAN0923_Issue 3_04/15 Touchpoint Pro
Operating Instructions
30
3. Mechanical Installation
3.2.3 Large Wall Mounted Enclosure - Mild Steel

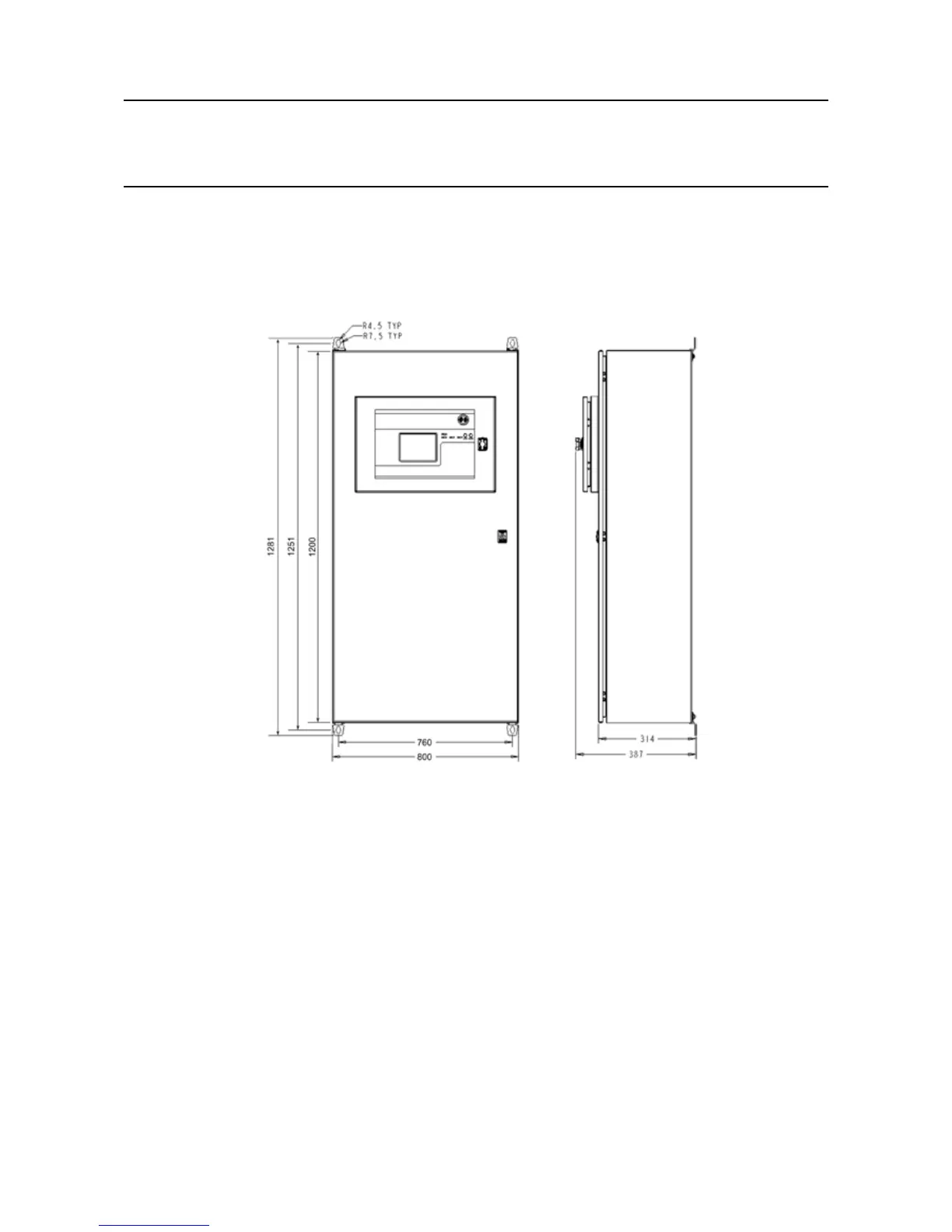

The dimensions of the large wall mounted unit (Controller or Remote) are shown below (all dimensions in
mm):
Figure 3.4 Touchpoint Pro Large Wall Mounted Enclosure - Mild Steel
