MAN0923_Issue 3_04/15 Touchpoint Pro
Operating Instructions
29
3. Mechanical Installation

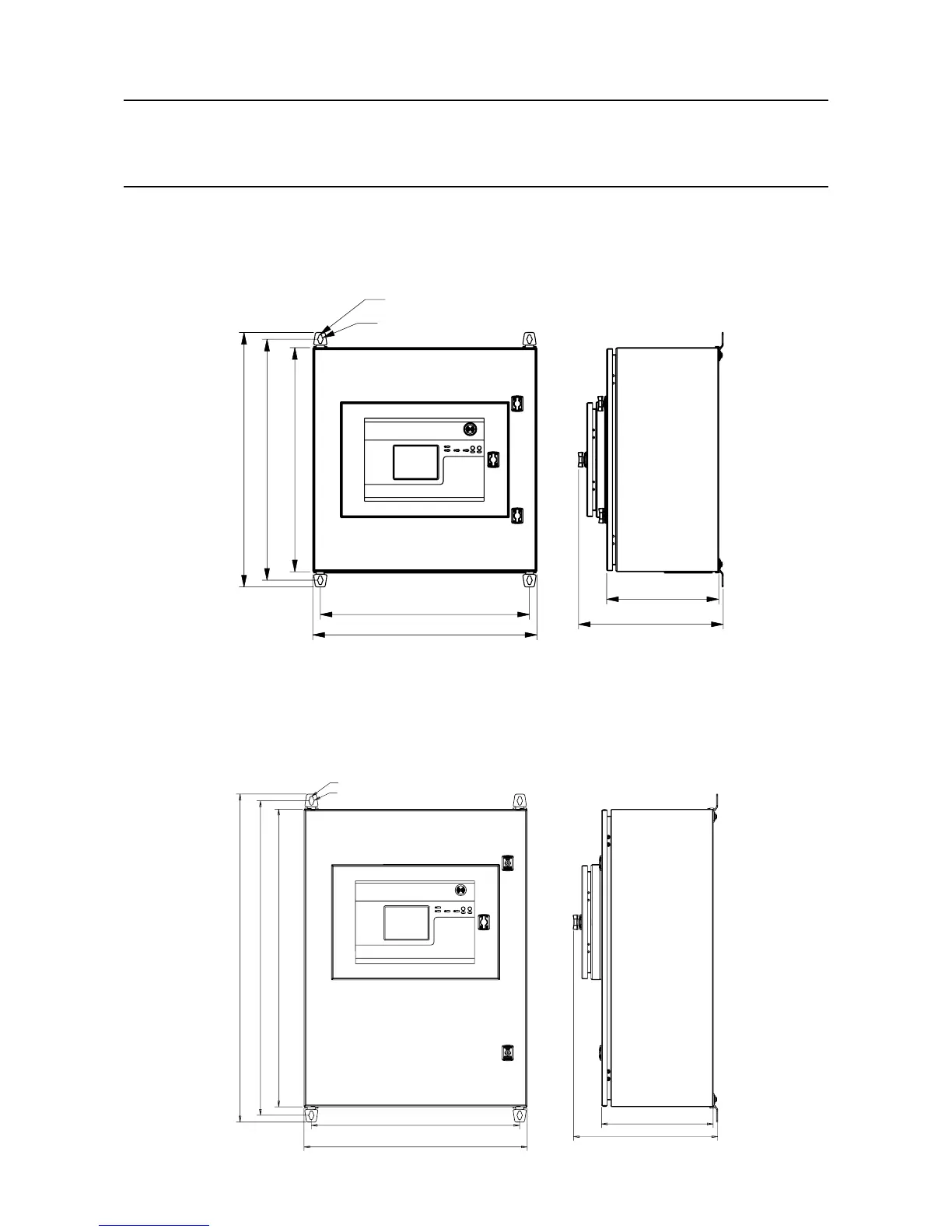

3.2.1 Small Wall Mounted Enclosure – Mild Steel
The dimensions of the small wall mounted unit (Controller or Remote) are shown below (all dimensions in
mm):
3.2.2 Medium Wall Mounted Enclosure – Mild Steel
The dimensions of the medium wall mounted unit (Controller or Remote) are shown below (all dimensions in
mm):
681 645 600
600
387
300
560
R4,5 TYP
R7,5 TYP
Figure 3.2 Touchpoint Pro Small Wall Mounted Enclosure - Mild Steel
881 845 800
R4,5 TYP
R7,5 TYP
560
600
300
388
Figure 3.3 Touchpoint Pro Medium Wall Mounted Enclosure - Mild Steel
