MAN0923_Issue 3_04/15 Touchpoint Pro
Operating Instructions
28
Caution: The Touchpoint Pro enclosure is heavy (refer to table of typical weights, single person lift is
not recommended). Before lifting the enclosure, consider and implement control measures to reduce
the risk of injury. Refer to local safety regulations.
Caution: The Touchpoint Pro wall mounting brackets must always be installed in a vertical orientation
as shown.
Fixing bolts should be of minimum diameter 8 mm, to a depth of minimum 50 mm.
Caution: It is the installer’s responsibility to select the appropriate xings taking into account the
structure of the mounting surface and the weight of the enclosure.
The typical weights of the wall mounted enclosures are shown in the table below. Please be aware that the
weight may vary depending on the options selected.
Description Approximate
Weight in kg
600 x 600 x 300 WM steel enclosure Local 37
600 x 600 x 300 WM steel enclosure Remote 37
800 x 600 x 300 WM steel enclosure Local 46
800 x 600 x 300 WM steel enclosure Remote 46
1200 x 800 x 300 WM steel enclosure 81
3. Mechanical Installation
Correct Incorrect

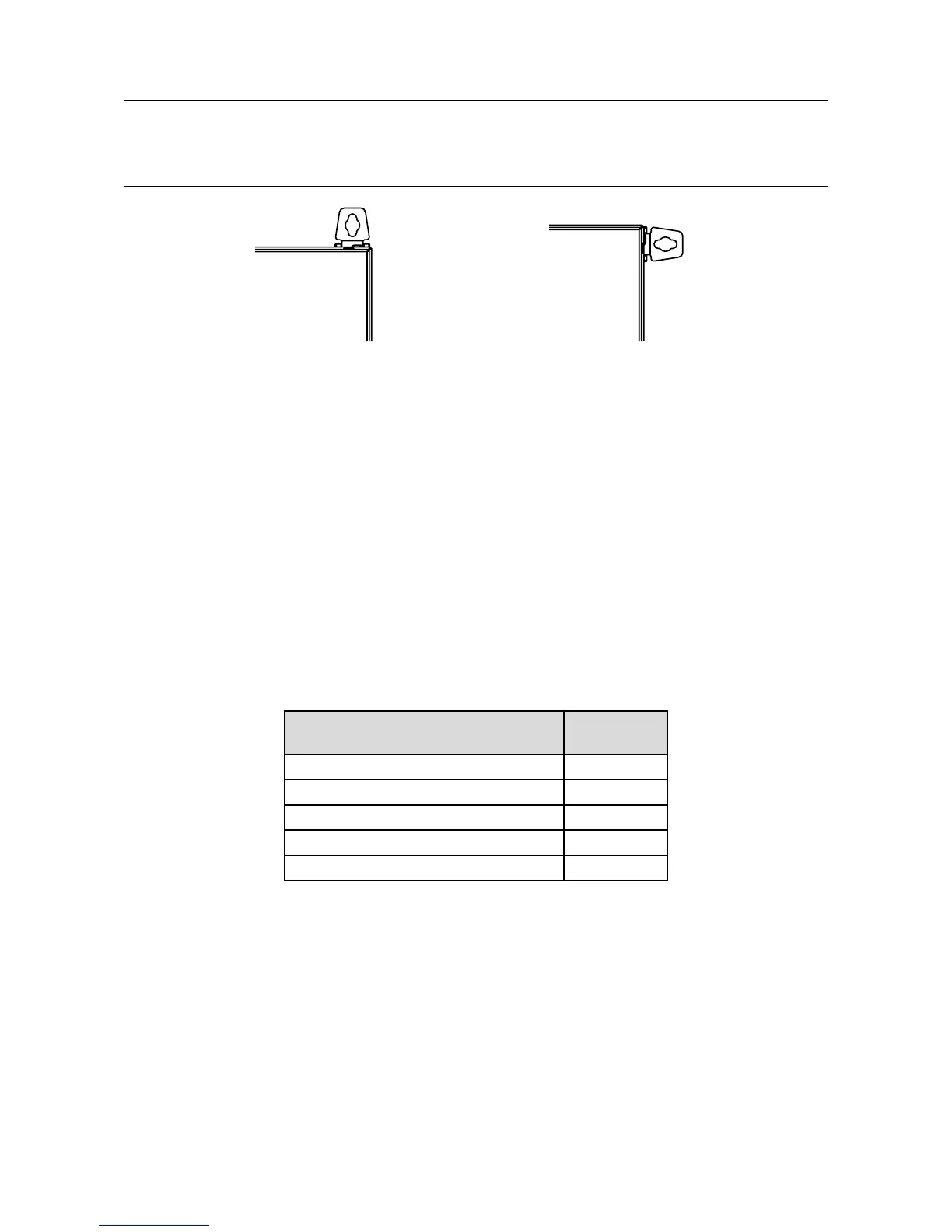

Figure 3.1 Touchpoint Pro wall mounting brackets orientation
